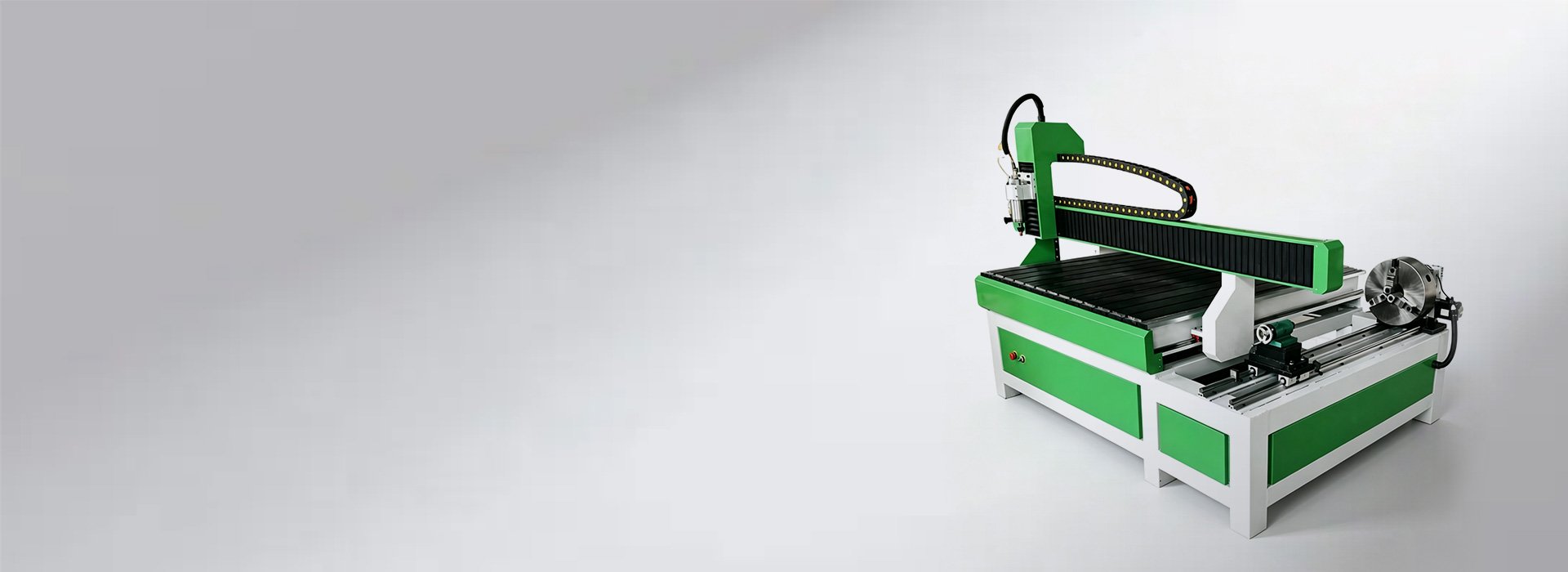

Your Reliable Mini CNC Router Supplier
MC mini CNC router is a compact and compact CNC machine tool that can be used for engraving, cutting, milling, drilling, and two-dimensional and three-dimensional processing applications. Designed for increased processing efficiency, reduced labor costs, and optimized production stability, our mini CNC router provides you with more reliable automated processing solutions.
Our mini CNC router with high speed spindle and an easy-to-operate control system, so you can learn quickly and put it into production. Besides, the MC mini CNC router not only occupies a small area and has a low equipment investment cost, but can still keep a good processing accuracy and stable operation. It is helping you achieve more stable and more accurate processing results.
If you are looking to improve processing efficiency and reduce production costs, welcome to contact MC. We will provide you with the most suitable offer and the solution that best meets your business needs.

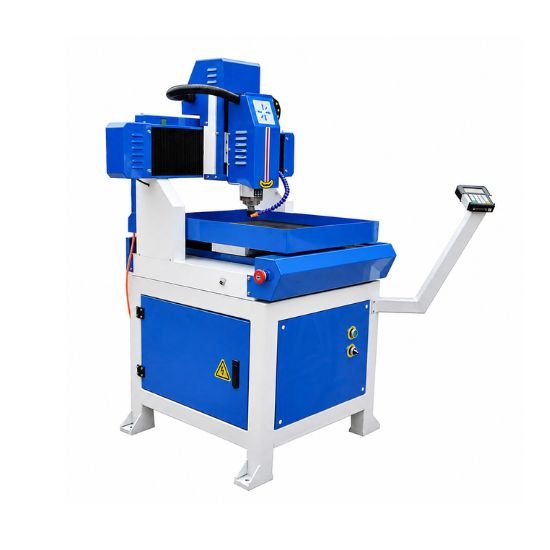

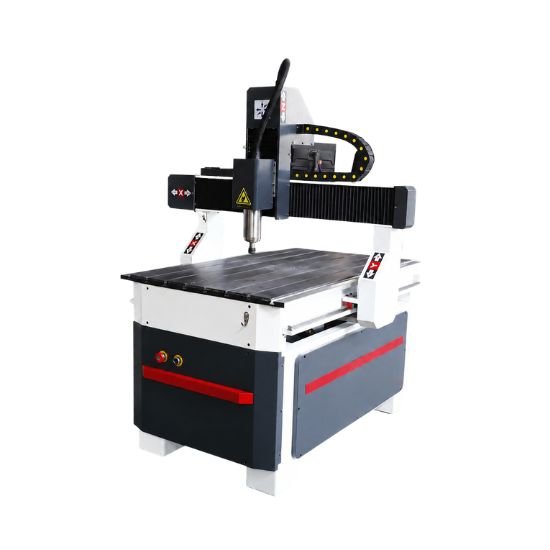

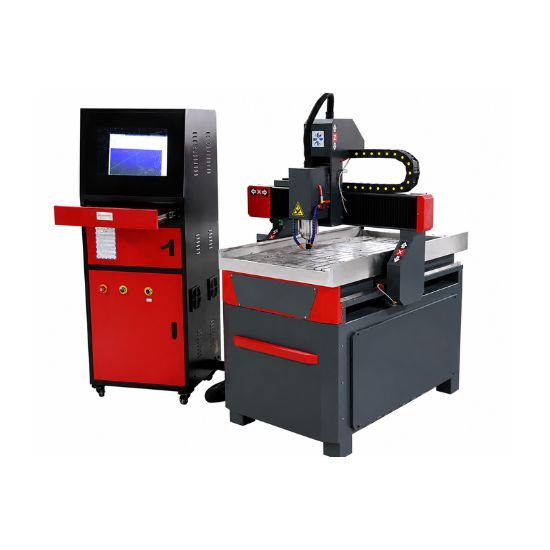

Types of MC Mini CNC Router
Features of the MC Mini CNC Router
The compact body design is ideal for small workshops, and the equipment is easy to move and install.
Affordable CNC machining solutions, ideal for individuals or companies on a budget.
The cast steel body and three-axis ball screw transmission system can effectively improve processing accuracy and operating stability.
It adopts a gantry layout structure, a simple structure, high processing accuracy, and good overall performance.
The equipment is simple to operate, the control system is easy to learn, and first-time employees can get started quickly.

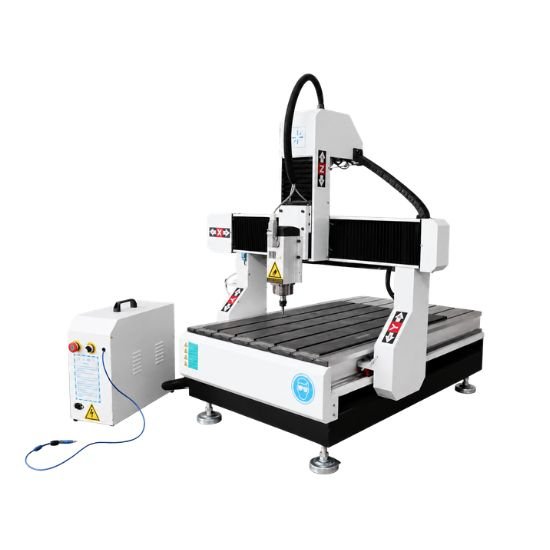

We support various processing sizes such as 400×400mm, 600×900mm, and 1200×1200mm to meet your customization needs.

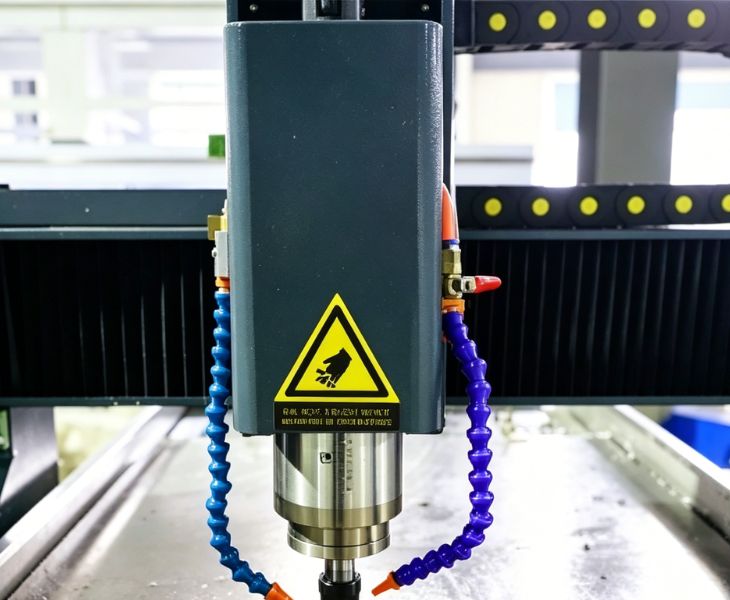

High-Power Spindle and Advanced XYZ Shaft
The MC mini CNC router is equipped with a 1.5kW high-frequency water-cooled spindle, which is designed for high-speed, stable processing and long-term continuous operation. Our mini CNC router uses square guide rails, which have higher rigidity, smoother operation performance, and longer service life than ordinary guide rail systems. The Z-axis uses 4 sliders, and the XY-axis uses a thicker screw, which greatly improves the service life and cutting accuracy of the equipment.

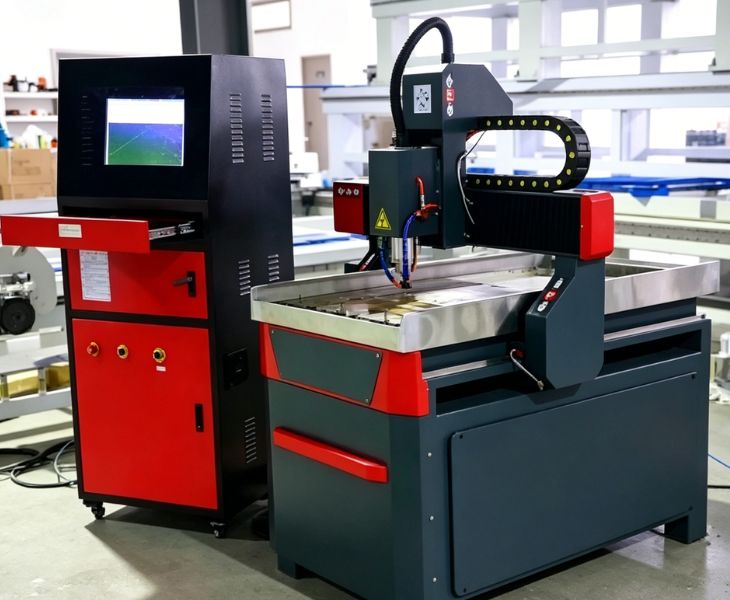

Stable Body Structure and An Intelligent Operating System
The MC mini CNC router has a high-strength body structure design, which can effectively reduce the vibration generated when running at high speed, thereby achieving smoother cutting results. At the same time, our small CNC router is equipped with an intelligent operating system to help you complete processing tasks easily. If you are a first-time user of CNC equipment, you can also quickly get started and improve production efficiency.

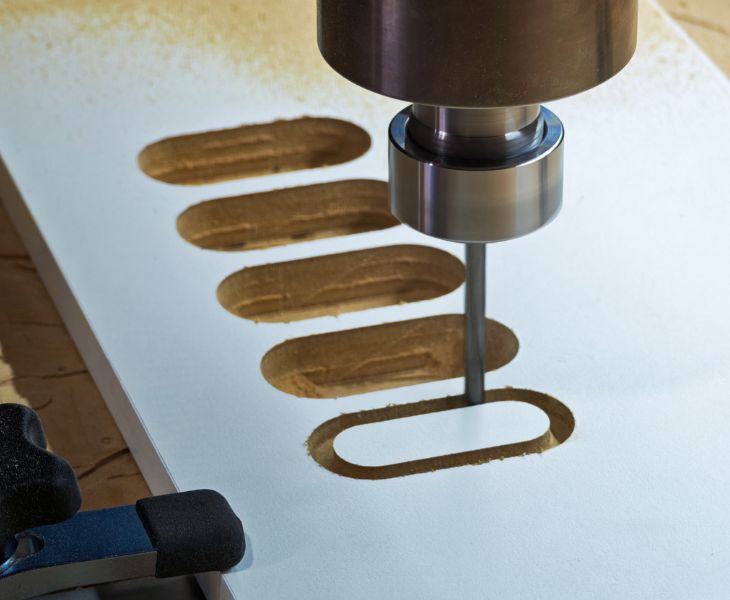

Strong Cutting Ability
The MC mini CNC router adopts the upgraded XYZ axis motion system, which can provide stronger processing capacity, smoother operating performance, and higher processing accuracy. Besides conventional 2D engraving and cutting processing, the equipment can also stably complete complex 3D engraving and relief processing tasks, meeting more of your customized production needs.
Application of the MC Mini CNC Router

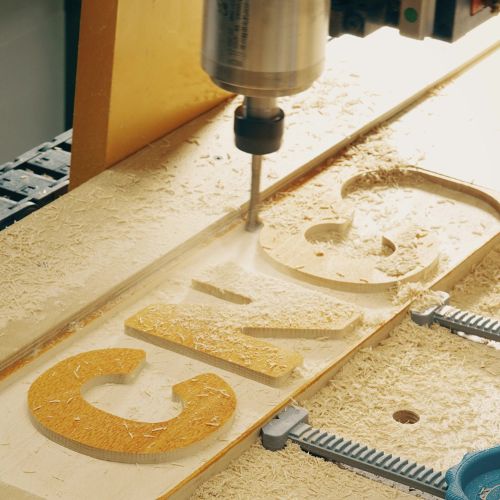

MC mini CNC router can achieve a smooth edge cutting effect and fine engraving performance. It is widely suitable for luminous word production, advertising logos, display boards, and customized advertising product processing to meet your customization needs.

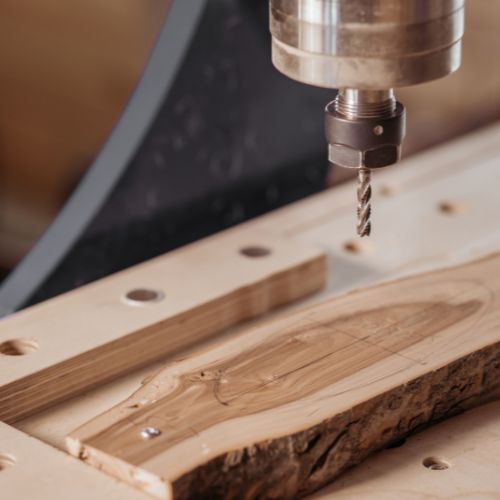

With stable cutting performance and high-precision processing capabilities, the MC Mini CNC router can help your business improve production efficiency and production consistency. It is suitable for wood carving, cabinet making, and wooden crafts.

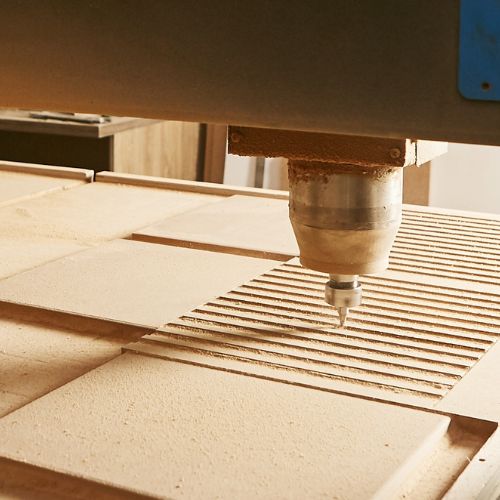

MC mini CNC router has stable processing accuracy, which can realize fine pattern carving and precise hole opening of furniture. Our mini CNC router is adapted to small and medium furniture factories and custom furniture studios, to meet personalized processing needs.

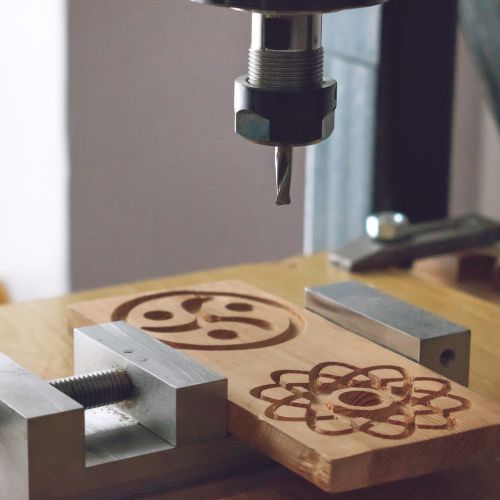

MC mini CNC router supports diversified decoration style customization, is suitable for indoor soft furnishings and work decoration processing, and can make wall pendants, wooden grilles, artistic relief decorations, and home accessories.

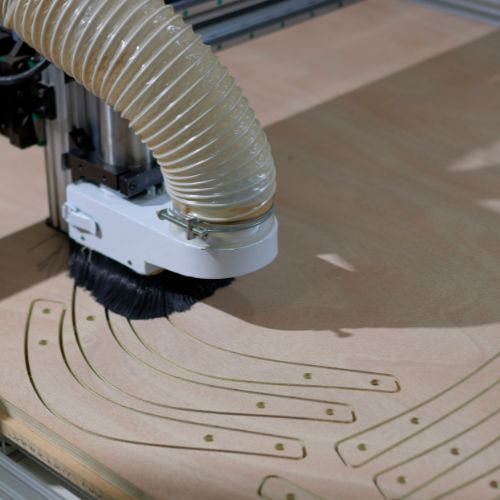

MC mini CNC router can be used for engraving and cutting wood musical instrument parts, decorative components, and custom musical instrument accessories. With ultra-high precision, it can effectively improve product quality and process detail performance.

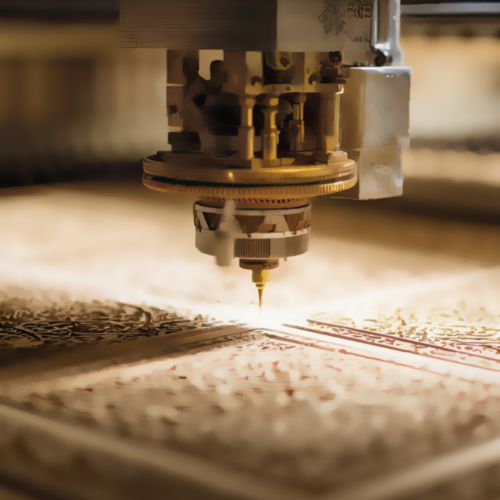

The MC mini CNC router has a compact and flexible body, which can perfectly restore complex design details. Flexible machining capabilities can help you achieve more refined and complex model manufacturing effects.
- Mini CNC Router Specification
| Item | Specification |
| Working Area | 400x400mm / Custom |
| Machine Frame | Iron Cast |
| Spindle Power | 1.5kW–3kW |
| Positioning Accuracy | ±0.05mm |
| Max Speed | 24000 RPM |
| Max. Travel Speed | 20,000mm/min |
| Max. Working Speed | 12,000mm/min |
| Control System | Mach3 / DSP |
| Supported Materials | Wood, Acrylic, PVC, MDF, Aluminum |
| Voltage | AC 220V/50-60Hz or Custom made |
| Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
A mini CNC router can perform engraving, cutting, drilling, milling, and other processing applications on a variety of materials. Common processed materials include wood, plastic, signage materials, soft metals, and composite materials.
Wood: solid wood, MDF, plywood, particleboard
Plastic: PVC, ABS, acrylic, plastic
Soft metals: aluminum, brass
Composite materials: aluminum composite materials, copper composite materials, titanium composite materials, zinc composite materials
The biggest difference between a mini CNC router and a standard CNC router is reflected in the equipment size, processing capacity, application range, and production scale.
The mini CNC router is compact, occupies a small space, and has low equipment input cost. It is very suitable for small and medium-sized enterprises and application areas that require flexible processing. Despite its small size, the mini CNC router can still improve high processing accuracy and stable cutting performance, and is suitable for processing materials such as wood, acrylic, PVC, and soft metals.
The standard CNC router has larger machined dimensions, a more rigid body structure, and stronger spindle power. It is more suitable for large-scale plate processing, large-batch continuous production, and industrial manufacturing applications that require higher cutting capacity.
The machining accuracy of the mini CNC router depends on the equipment structure, guide rail quality, spindle performance, transmission system, and overall configuration level. Our mini CNC router uses high-quality components to guarantee consistent and accurate cutting. It is usually positioned with an accuracy of ±0.05 mm. This illustrates that during its operation, it is able to be positioned very precisely and that the effect of the cut is consistent when the same operation is repeated.
Most mini CNC routers are flexible in terms of software compatibility. They can be used for drawing design, machining path generation, and equipment operation control. The specific type of software compatible also depends on the control system, operating platform, and communication method used.
Common design software includes AutoCAD, CorelDRAW, Adobe Illustrator, and Fusion 360. These software are mainly used for vector graphic design, product drawing, engraving pattern making, and processing file creation. When it comes to knife path generation and CNC programming, many customers use software such as ArtCAM, VCarve, Aspire, Fusion 360, and Mastercam. Besides, in terms of device control, the mini CNC router is generally compatible with Mach3, NCStudio, DSP control systems, and other motion control software, depending on the device configuration.
The service life of the mini CNC router depends on the equipment quality, structural design, core component configuration, usage environment, and daily maintenance. Under normal use and proper maintenance, it can usually be used for 5-10 years. High-quality mini CNC routers usually feature a stable body structure, high-precision guide rails, a reliable spindle system, and durable transmission components, enabling stable operation for many years under normal production conditions. For many small and medium-sized enterprises, with reasonable maintenance, our mini CNC router can be used for engraving, cutting, and daily production processing in a stable and long-term manner. Therefore, for you, choosing a stable and reliable device can not only improve your production efficiency but also reduce the risk of post-maintenance.
What is A Mini CNC Router?
A mini CNC router is a compact, computer-controlled automated processing equipment that can be used for engraving, cutting, milling, drilling, and two-dimensional and three-dimensional processing applications. It is small in size, but it can still provide high processing accuracy and flexible multifunctional processing ability, and can widely process wood, acrylic, plastic, PVC, foam, and soft metal materials such as aluminum and copper.
Unlike traditional manual machining equipment, the mini CNC router operates through CNC software and an automated motion control system. You can use graphic design software or CAD software to create processing drawings and then convert them into G-code instructions, thereby controlling the equipment to perform precise movement and automated processing along the X, Y, and Z axes.
Due to its compact structural design, mini CNC routers are very suitable for small workshops and custom manufacturing applications that require high space utilization and flexible production. Even if your workspace is limited, you can still achieve stable and professional processing results.
How Does a CNC Router Work?
Mini CNC router is an automated cutting equipment that is able to convert digital files into finished parts precisely and repeatably. Next is the workflow it runs.
Create Digital Files
Every CNC machining project involves drawing a 2D layout or 3D model on CAD software to accurately represent the shape and size of the final part.
Convert to Machine Instructions
Next, you need to import the digital file into CAM software. This software generates a toolpath that indicates to the machine tool where and how to cut, including depth of cut, speed, and tool selection. Besides, CAM software will export G code, which is the code language used by CNC cutting machines to accurately control the spindle movement.
Fixed Material
The prepared material is placed on the milling machine table and held in place using a jig or vacuum cup system. The correct clamp guarantees that the sheet does not move during cutting and also maintains tight tolerances.
Start of Operations
You need to load the correct cutting tool into the spindle, set the zero points of the X, Y, and Z axes, and upload the G code file to the CNC system to quickly check and confirm that all parts are in the correct position.
Officially Operational
During formal operation, CNC engraving machines use servo motors or stepper motors to guide the main shaft along the X, Y, and Z axes. The cutting tool rotates at high speed, allowing for precise removal of material as directed.
Finalization
Once the cutting is complete, remove the part from the workbench. There are some materials you can use straight away, and others that require you to lightly sand, polish, or assemble.
