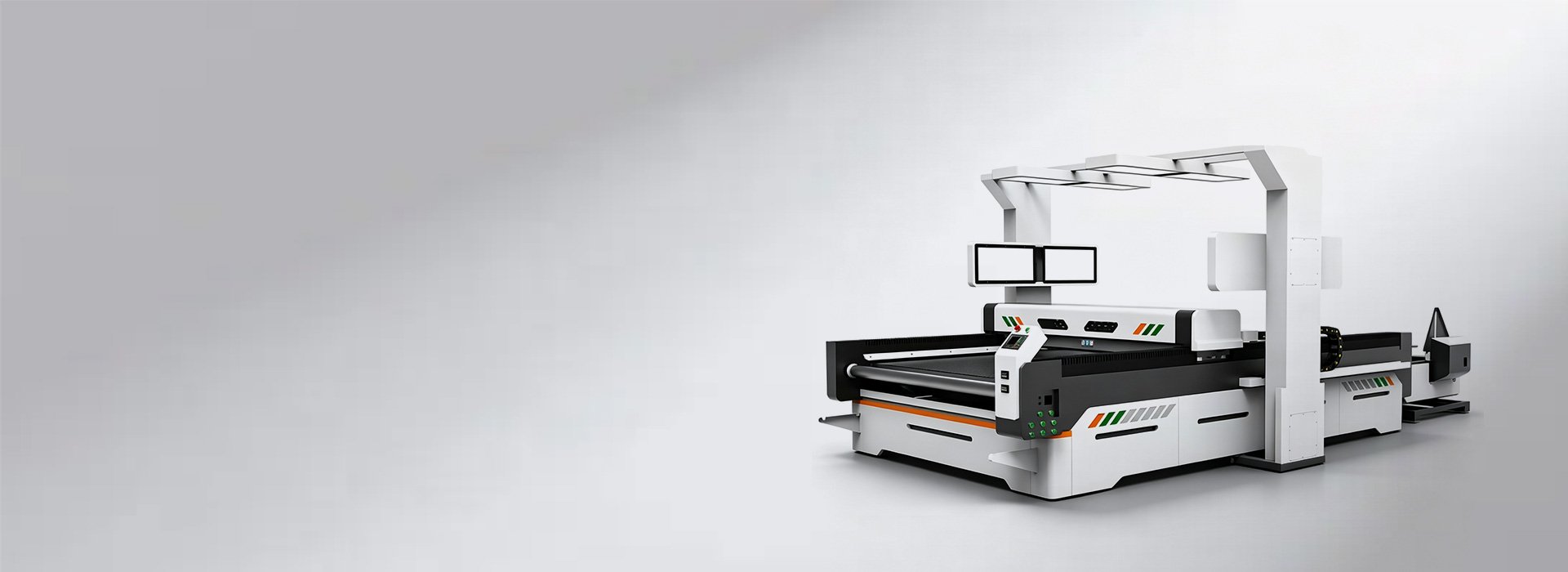

Your Reliable Auto Feeding Laser Cutting Machine Supplier
The MC automatic feeding laser cutting machine is an intelligent laser cutting equipment designed for processing roll materials and flexible materials. Our laser cutting machines are equipped with an automatic feeding system and a conveyor belt working platform to enable uninterrupted feeding and continuous laser cutting. It is mainly used in the processing and production of textile fabrics, leather, non-woven fabrics, and various flexible materials.
Our machine can be equipped with dual laser cutting heads to significantly improve cutting efficiency and production capacity. You can freely configure features such as a CCD camera, pen scanner, large-format vision system, and projection capabilities. Besides, the automatic loading and unloading system works seamlessly with the dual-head laser configuration, significantly reducing handling time and improving the whole production efficiency.
Welcome to contact MC for a configuration plan and factory direct supply quotation of exclusive cutting equipment, to realize a more efficient automated production process.

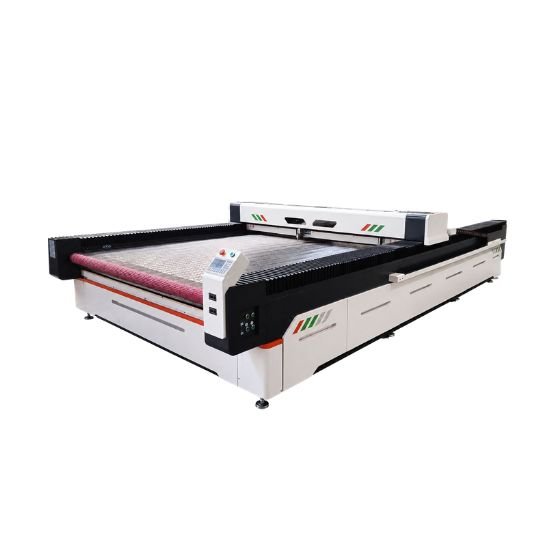

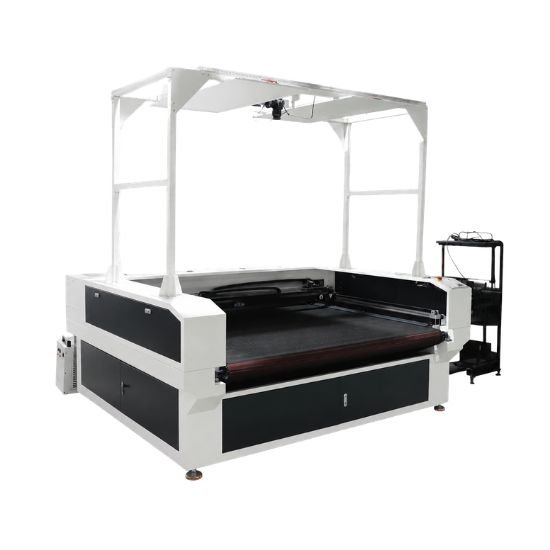

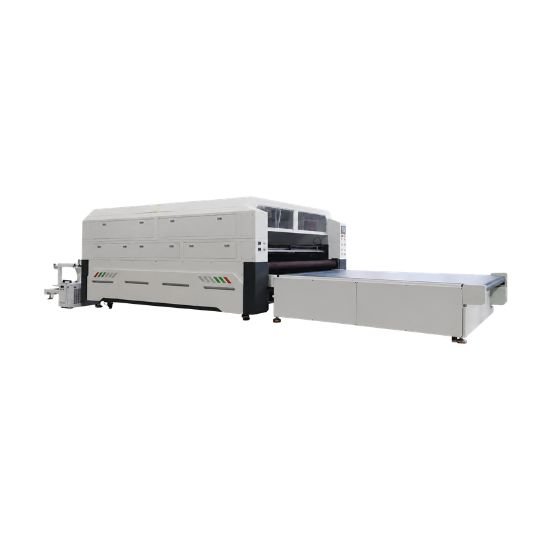

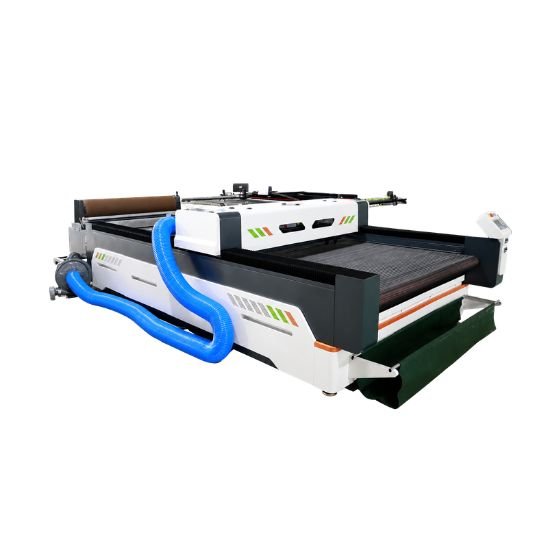

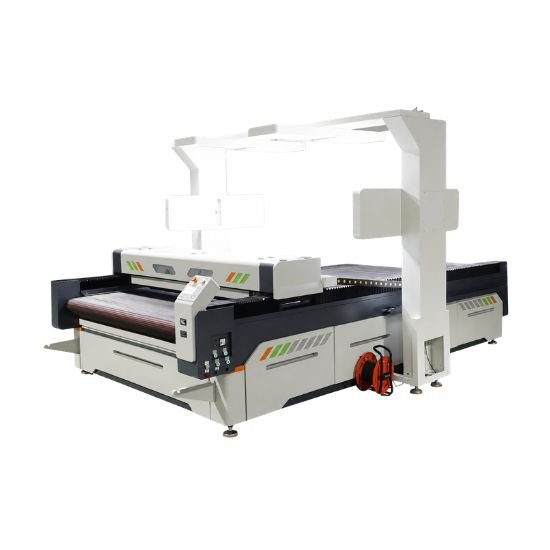

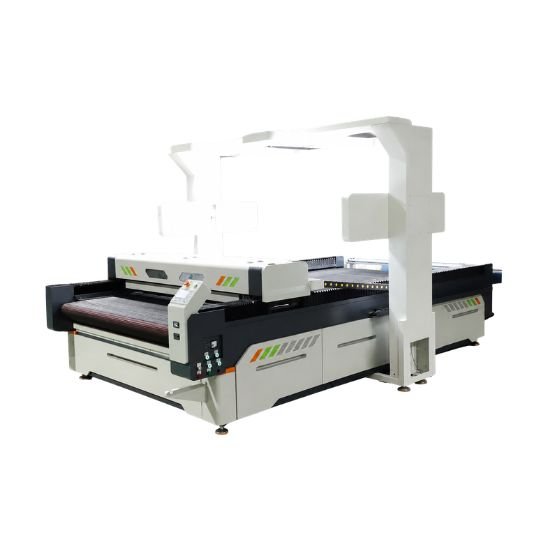

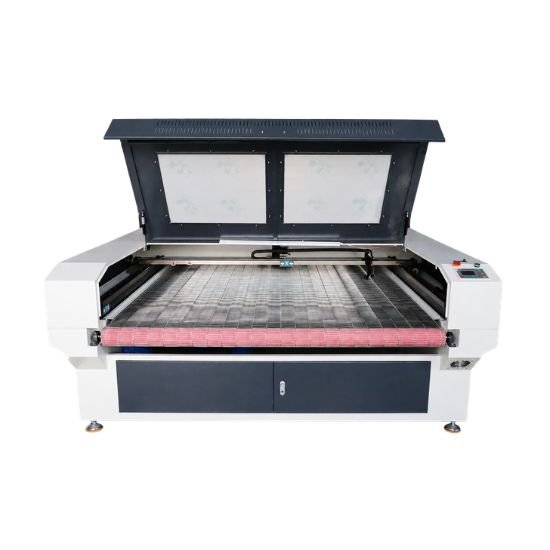

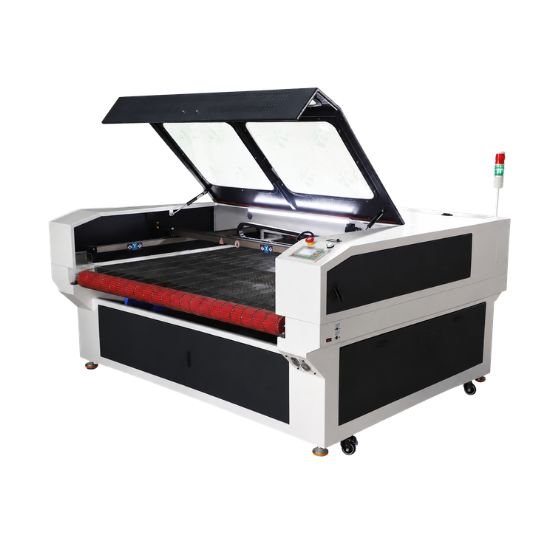

Types of MC Auto Feeding Laser Cutting Machines
Features of the MC Auto Feeding Laser Cutting Machines
With the automatic calibration function, it guarantees the correct feeding path, reduces downtime, and improves processing efficiency.
Automatically recognizes printed patterns and contours for precise cutting of printed fabrics, embroidered materials, and custom graphics.
The machine speed and laser power output can be adjusted in real time, the operation is convenient, and it can meet various processing needs.
With automatic laser power compensation, it can greatly improve cutting effect and edge smoothness.
Compatible with engraving and cutting of fabrics, leather, and many other materials, and equipped with a continuous conveyor table for rolling cloth delivery.
Equipped with RDworks/RDvision software, compatible with mainstream design formats (AutoCAD/CorelDraw).

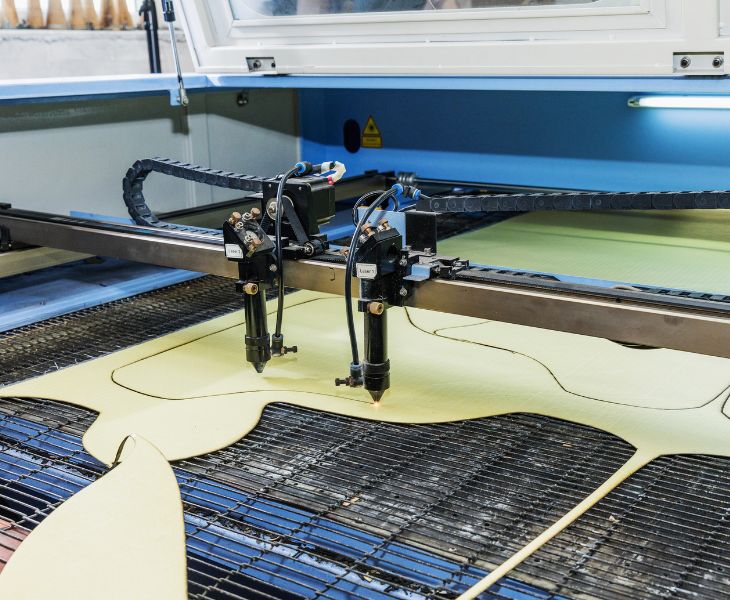

Fully Automated Material Handling System
The MC automatic feeding laser cutting machine is equipped with an intelligent automatic loading and unloading system. It enables the full process of automatic feeding, automatic cutting, and automatic collection, helping you reduce manual intervention. Besides, combining raw material pallets and finished product pallets can realize the automatic operation of materials, improve production efficiency, and adapt to different product sizes and production volumes.

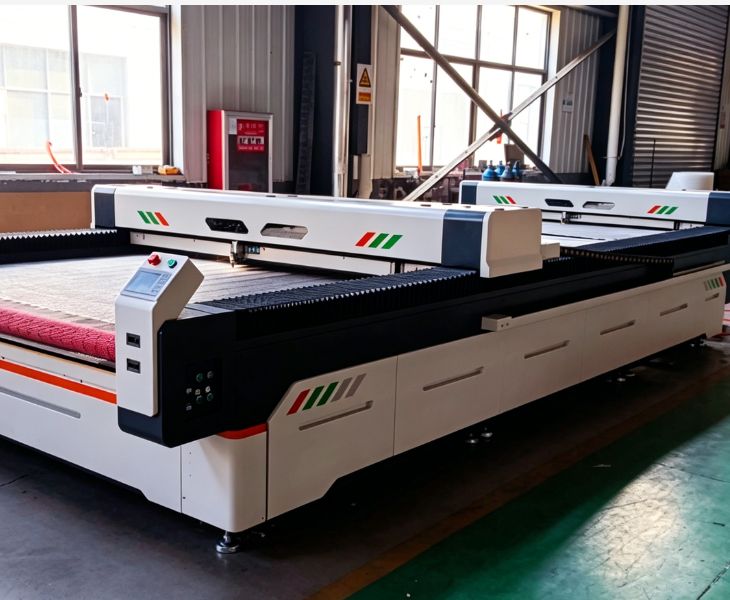

Intelligent Auto-Focus Laser Head
The MC automatic feeding laser cutting machine is equipped with an advanced intelligent laser cutting head and has an autofocus function. With no intervention, the focusing speed can reach 10 m/min, and the repeatability accuracy is about 50 microns. The built-in lens and nozzle cooling system can effectively protect the focusing mirror, collimator, nozzle, and ceramic components, guaranteeing that materials of different thicknesses can keep a stable cutting quality while extending the service life of key components.
Applications of the MC Auto Feeding Laser Cutting Machines

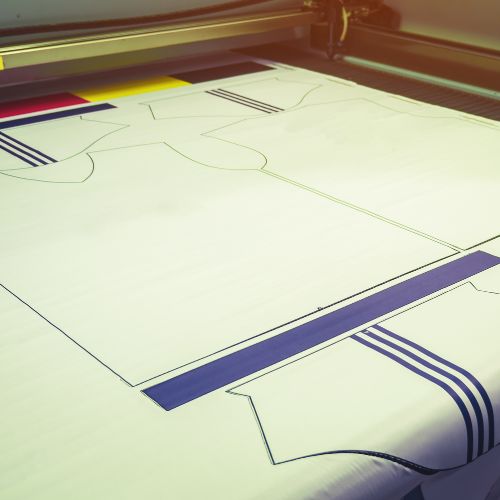

In the textile and clothing industry, MC automatic feeding laser cutting machines can achieve continuous production. Our equipment can cut cotton, linen, polyester fabrics, and leather materials, mainly used for clothing, fabric accessories, and textile raw material processing.

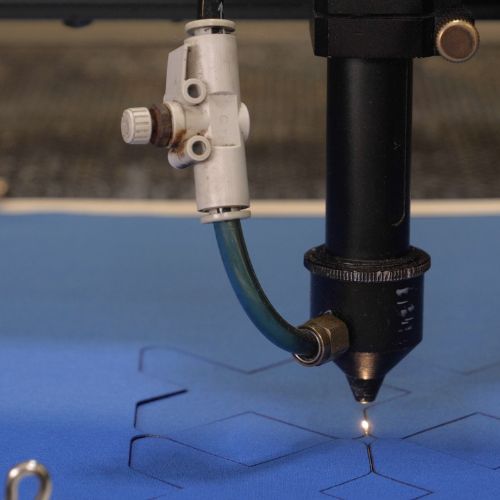

In the home textile industry, the MC automatic feeding laser cutting machine is widely used in the processing of curtain fabric, sofa fabrics, and bedding fabrics. Our equipment supports continuous cutting of large-format coils to meet high-volume production needs.

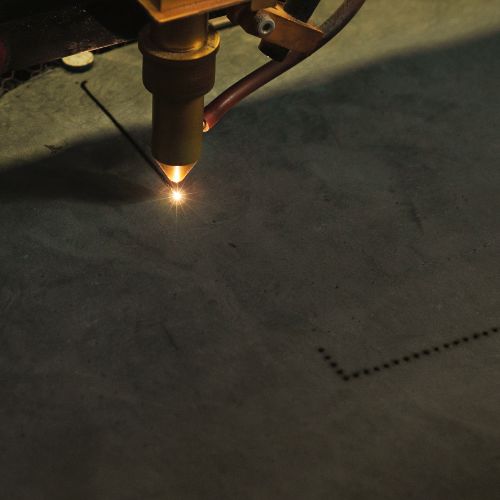

In the automotive field, the MC automatic feeding laser cutting machine can be used for processing automotive interior components such as car seat fabrics, carpets, felt, sound insulation, and heat insulation materials.

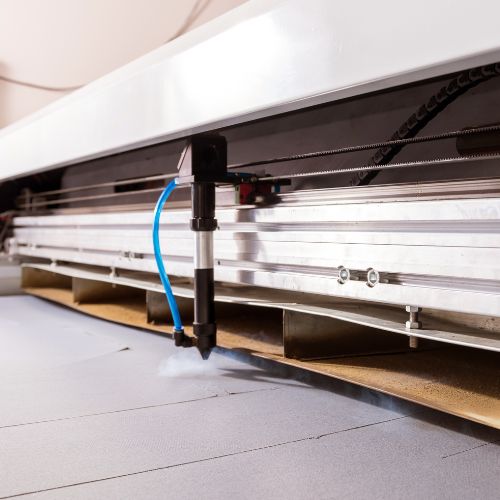

In the outdoor field, our automatic feeding laser cutting machine can be used to cut tents, coated fabrics, and waterproof canvas, suitable for outdoor textile product processing, such as awnings and waterproof fabrics.
- Auto Feeding Laser Cutting Machine Specification
| Item | Specification |
| Laser Tube | Sealed CO2 Glass Tube |
| Power Supply | AC220V,50Hz/AC110V,60Hz |
| Working Area | 1600×1000mm / 1600×3000mm |
| Laser Type | CO₂ Laser |
| Function | Cutting/Engraving |
| Laser Power | 60W-300W |
| Engraving Speed | 0-60000mm/min |
| Working Platform | Herringbone Net Automatic Feeding Platform |
| Cooling Mode | Water Cooling |
| Positioning Accuracy | ±0.05mm |
| Supported File Formats | AI, DXF, PLT, BMP, DST, DSB |
| Software | RDworks / RDVision |
| Operating Temperature | 5℃–40℃ |
The automatic feed laser cutting machine is an intelligent laser cutting equipment designed for continuous processing of roll materials and flexible materials. It is equipped with an automatic feeding system and a conveyor belt working platform, which can automatically transport materials to the cutting area and achieve continuous and uninterrupted production. Due to its high production efficiency, it is widely used in the textile, clothing, leather, non-woven fabric, and industrial material processing industries.
The automatic feeding laser cutting machine mainly works by an automatic feeding system, a conveying platform, a laser cutting system, and intelligent control software in coordination. Roll materials such as fabric, leather, felt, and non-woven materials are fed into the machine via a servo-controlled platform, roller, or robotic arm. Once the material is ready, the machine performs high-precision laser cutting according to a preset program. Once the cutting is complete, the finished parts are transported to a collection area where the waste material is naturally separated.
The automatic feed laser cutting machine can process a variety of flexible materials. For example, fabrics, textiles, genuine leather, PU leather, synthetic leather, non-woven fabrics, felt, filter materials, EVA foam, carbon fiber fabrics, PVC banner materials, sofa fabric, and other coil materials. Our equipment uses a non-contact cutting method to have smooth cutting edges without tool wear. It is suitable for customized production and high-volume manufacturing needs.
| Feature | Auto Feeding Laser Cutting Machine | Flatbed Laser Cutting Machine |
| Material Type | Roll materials and flexible materials | Sheet materials and rigid materials |
| Feeding Method | Automatic continuous feeding | Manual loading and positioning |
| Production Mode | Continuous roll-to-roll production | Batch or single-sheet production |
| Labor Requirement | Low | High |
| Production Efficiency | Suitable for mass production | Suitable for low-volume production |
| Automation Level | High | Moderate |
| Material Utilization | Higher with automatic feeding and nesting | Depends on manual layout |
The price of an automatic feeding laser cutting machine will vary according to the equipment configuration, laser power, automation degree, and function. The basic model is relatively low in price and generally more affordable. The larger the machining size, the higher the equipment cost. The higher the power of the laser, the faster the cutting speed and the wider range of materials that can be processed. Single-head, dual-head, or multi-head configurations will directly affect equipment capacity. For printed fabrics and patterned materials, the CCD visual positioning system will improve the performance of the equipment. Features such as automatic loading and unloading, automatic typesetting software, and production line integration will improve the overall level of automation. These are all price factors that affect automatic feed laser cutting machines.
When choosing the right automatic feed laser cutting machine, you should first evaluate your material type and production needs. The main considerations are the type and thickness of materials, processing amplitude, capacity requirements, automation requirements, and software compatibility. For high-volume coil processing enterprises, you should give preference to continuous feeding systems. For printing material processing companies, it is recommended that you configure the CCD visual positioning function. A reasonable equipment configuration can help you improve production efficiency and reduce cost expenditure.
