Your Reliable Digital Knife Cutting Machine Supplier in China
MC digital knife cutting machines are automated cutting equipment controlled by CNC systems. No physical dies are required. You just import your design files into the control systems, and the machine interprets the file data and executes the cutting automatically.
Our machines support quick-change tool heads, including vibrating knives, drag knives, and kiss‑cutting blades. With one machine, you can handle cutting, kiss‑cutting, and creasing in a single setup. The machines are also built for future expansion, so new features can be added. Contact us with any questions.

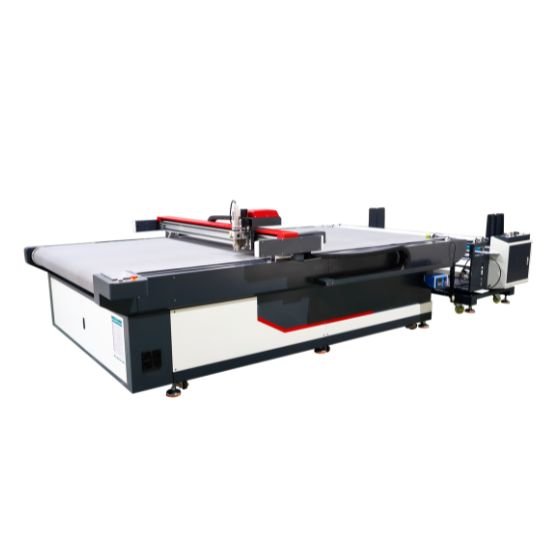

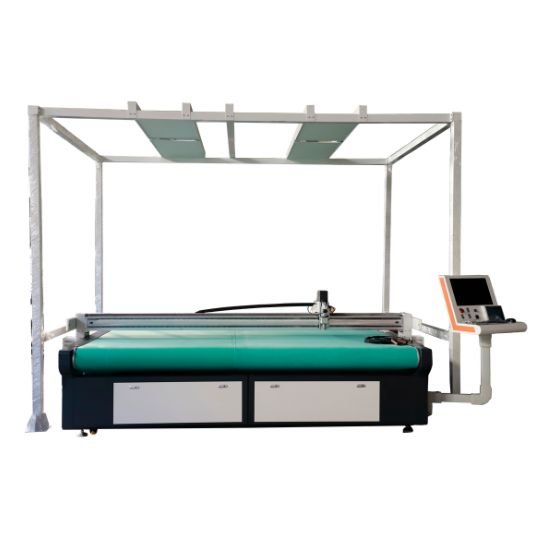

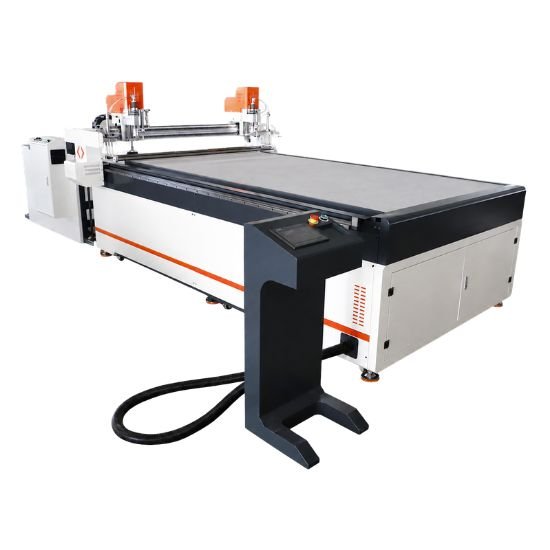

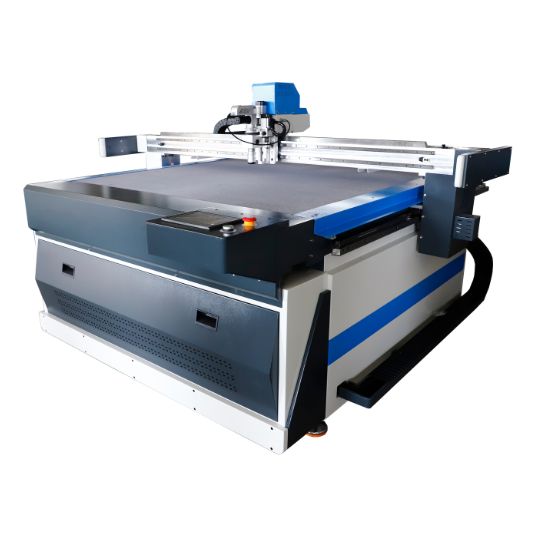

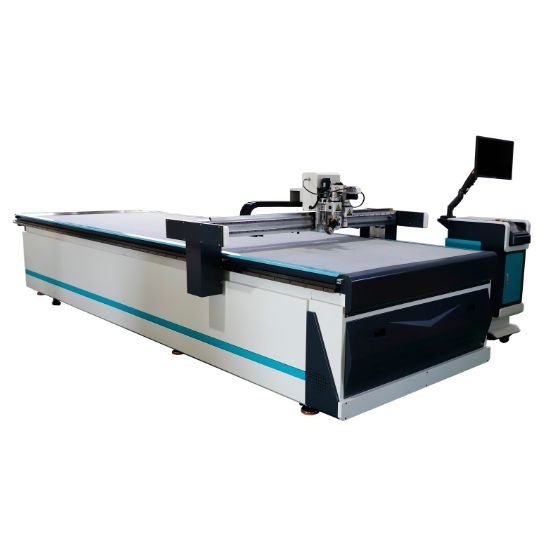

Types of Digital Knife Cutting Machine

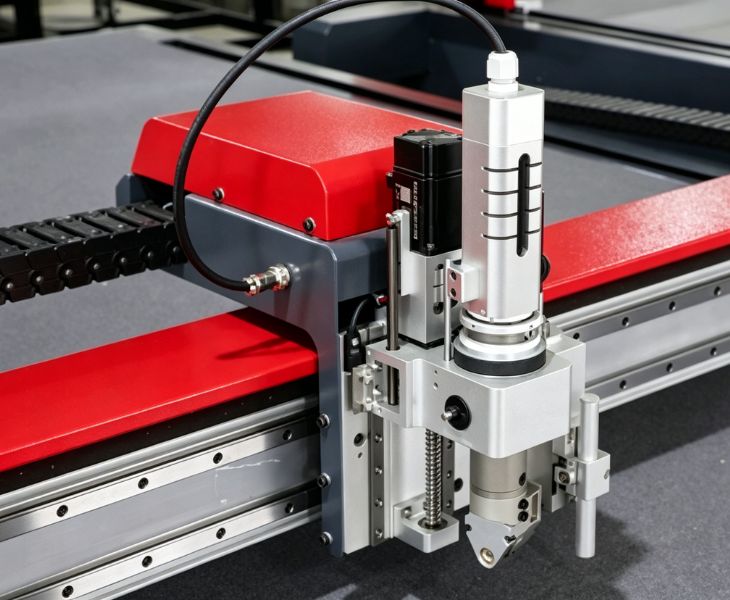

Eco-Friendly Cold Cutting
Our CNC cutting machine uses a cold cutting method that generates no heat during operation, so no smoke or burning fumes. That keeps your workshop clean. Additionally, cold cutting does not alter the material’s chemical properties, so it is suitable for cutting heat‑sensitive materials. If you want to improve workplace safety, you can choose the MC digital knife cutting machine.

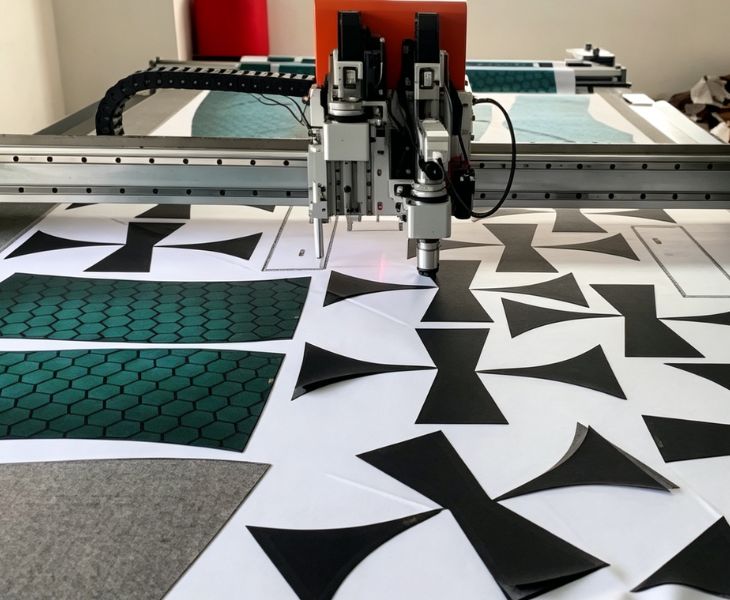

High-Precision CNC Cutting
Our CNC blade cutting machines are equipped with high-precision servo systems, achieving positioning accuracy of ±0.05 mm, so your cut parts come out the same size. Additionally, you can add a dynamic accuracy compensation system, which monitors and corrects deviations, so your scrap rate stays low.

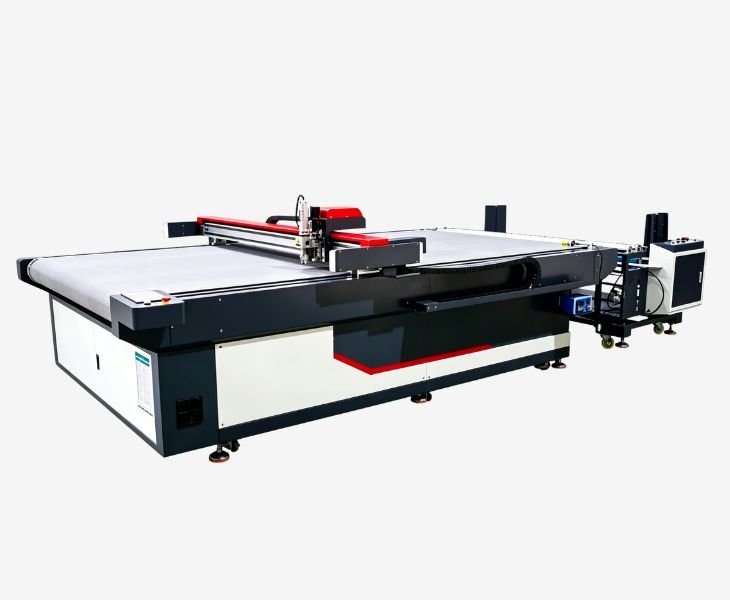

Full-Automation Production Line
Our CNC cutting machines can be equipped with optional automatic material feeding systems, automatic tool change systems, and CCD vision systems. With these systems, the machine automatically feeds and aligns materials.
Our automatic tool-changing system switches tools automatically, so you can complete cutting, creasing, and other processes in one workflow.

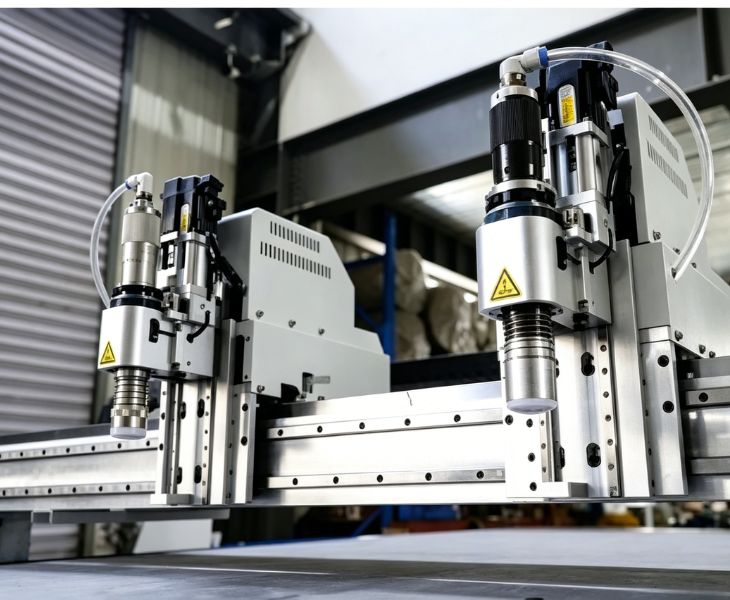

Tool-Free Flexible Changeover
Our digital knife cutting machines can be equipped with a tool-free knife holder system. The tool heads feature a snap‑fit design, so you can switch between different tools by hand — no tools required.
What used to take several minutes to change a tool now takes just 3 to 5 seconds. With less downtime, you can produce more products in the same amount of time.
Strict Full-Link QC & CE-Certified Digital Knife Cutting Machine
In the field of digital knife cutting machines, MC has 15 years of manufacturing experience. We provide advanced CNC machining equipment. Our digital knife cutting machines deliver precise cuts while operating quietly. To ensure the sustainability of your production, the equipment features a heavy-duty frame structure with high rigidity.
We also have a quality control system that covers every stage from R&D to final inspection. This enables us to deliver products quickly and reliably.
MC strictly follows international quality standards. Our digital knife cutting machines have obtained CE certification, which confirms that they meet international safety and performance requirements.
How MC Digital Knife Cutting Machines Help Solve Cutting Challenges

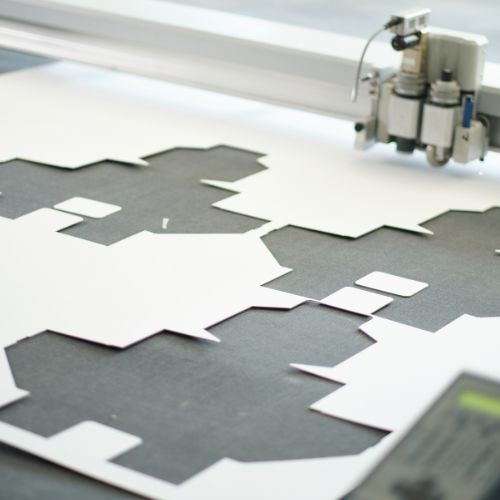

We once worked with a packaging company in Stuttgart, Germany. They handled a wide variety of packaging box orders, but always in small batches. Traditional die‑cutting took a long time, so they couldn’t deliver on time. Our CNC blade cutting machine uses die‑free digital cutting, so production time went from seven days to just two hours.

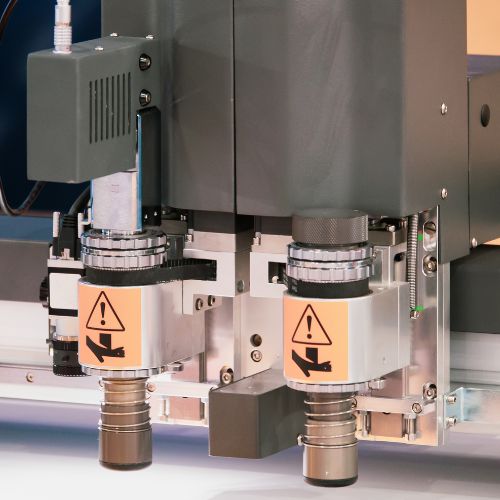

A custom furniture factory in Milan, Italy, handled a large number of customized orders and had to switch cutting patterns frequently. This cost them over 750 hours of productive time. Our CNC blade cutter is equipped with a tool-free quick-change system that allows you to swap blades in just 3 to 5 seconds. After using our machine, they could easily handle small‑batch custom orders.

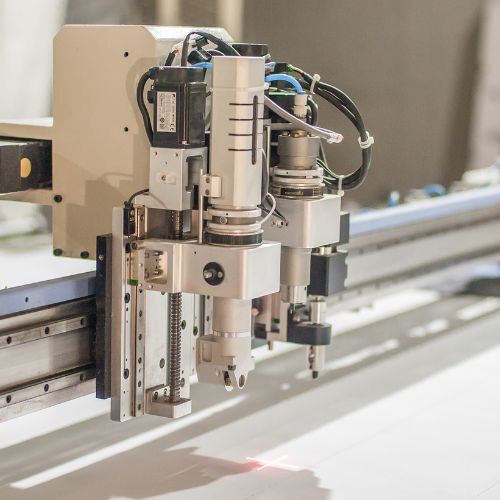

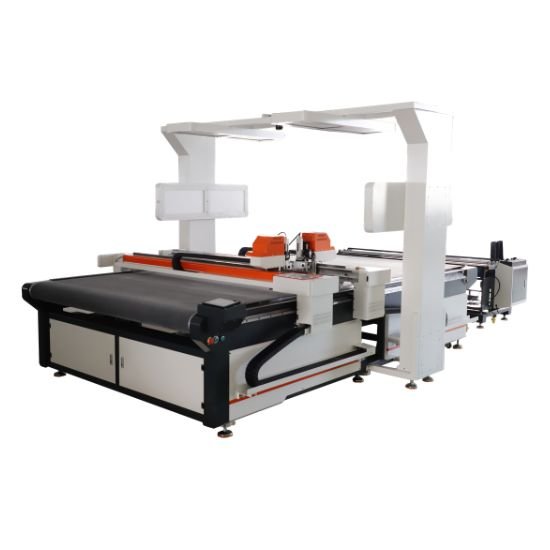

A large garment factory in Bangladesh needs to cut large volumes of fabric. However, fabric tends to shift during cutting. Our CNC blade cutter is equipped with a vacuum suction table that holds the fabric in place. After using our machine, they can cut multiple layers of fabric simultaneously.

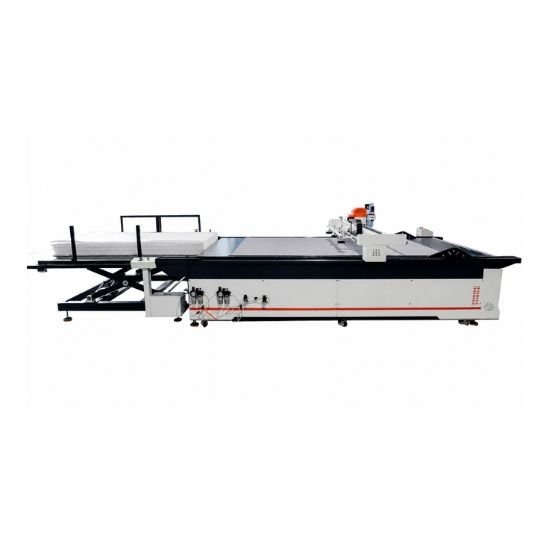

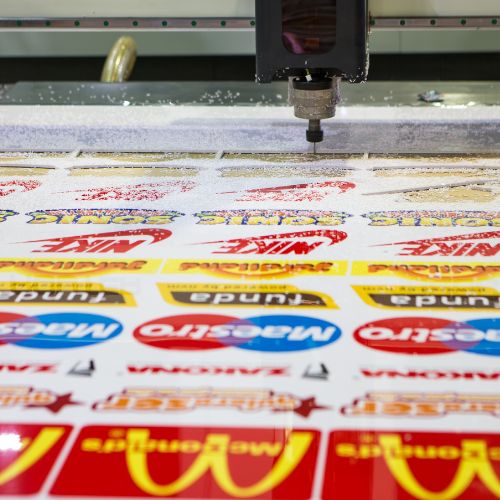

We once worked with an advertising signage company in Los Angeles. They used a traditional cutter before, and the PVC foam board edges often came out rough with burrs. Our CNC blade cutter uses a cold cutting process, so you can get products with smooth edges. That way, they didn’t have to sand the parts again after cutting.
- Specification of Digital Knife Cutting Machines
| Item | Specification |
| Machine Type | CNC Digital Knife Cutting Machine |
| Working Area | 1300×2500mm / 1600×2500mm / 2000×3000mm (Customizable) |
| Max Cutting Thickness | Up to 50mm |
| Cutting Accuracy | ±0.1mm |
| Repeat Positioning Accuracy | ±0.05mm |
| Max Cutting Speed | Up to 1200mm/s |
| Cutting Technology | Oscillating Knife / Drag Knife / Rotary Knife |
| Control System | Industrial CNC Control System |
| File Format | DXF / AI / PLT / PDF |
| Nesting Software | Intelligent Automatic Nesting |
| Automatic Feeding | Optional |
| Automatic Tool Change | Optional |
| CCD Vision System | Optional |
| Working Table | Vacuum Table |
| Power Supply | 220V / 380V, 50/60Hz |
Our digital knife cutting machines are available in a variety of working sizes. We offer multiple working sizes, including 1300 × 1300 mm, 1300 × 2500 mm, 1600 × 2500 mm, 2000 × 3000 mm, and more. Whether you need to produce small parts or large-format pieces, we have a model that is suitable for you. If you have special production requirements, we also provide customized solutions.
Our CNC blade cutters are available in gantry, cantilever, and portable configurations. Gantry-style cutters feature a stable structure and high rigidity, so they are suitable for cutting large sheets. If you want a machine that makes loading and unloading easy, the cantilever type is a good choice. Portable models are small and light, so they are suitable for small‑batch production.
An oscillating knife cuts materials by vibrating the blade up and down at high speed. It has strong cutting power and is suitable for hard materials. The blade of a drag knife is dragged along as the machine moves. This makes it quiet and fast when cutting materials. However, it is suitable for cutting thin materials.
Our digital knife cutting machine supports kiss cutting. You just set the suitable cutting depth in the control system according to the material thickness, so the blade cuts through the face material without going into the backing. The machine gives you reliable results — whether you’re cutting full-sheet labels or irregularly shaped stickers.

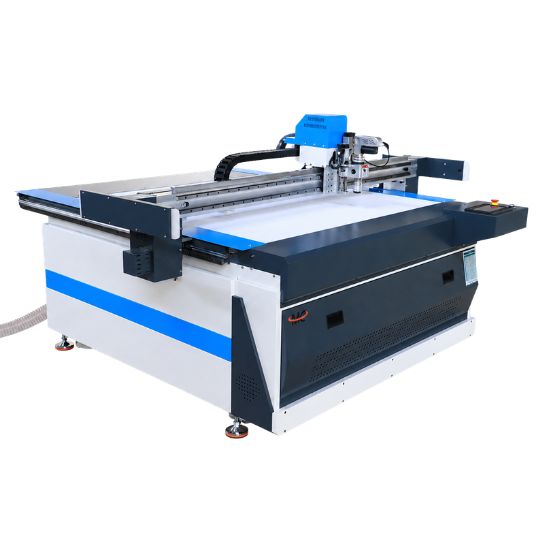

Flatbed digital cutting machines have smaller working areas, with common sizes like 1300×2500 mm and 1600×2500 mm. They are suitable for medium-sized panels, and you can use them to cut packaging boxes and rubber gaskets. Large-format cutting machines have large working areas, with common sizes like 1800×3000 mm and 2000×4000 mm. You can use them to process rolls or large panels.
Our CNC knife cutting machine features automatic feeding, which is an optional feature. With the automatic feeding system, the machine continuously feeds roll material into the cutting area, so you can process materials without interruption. If you need to process large volumes of rolled materials, you can add this automatic feeding system.
Our CNC knife cutting machine can be equipped with a variety of cutting tools to suit different materials and processes. Common options include oscillating knives, drag knives, drilling knives, and grooving knives. Oscillating and drag knives are used for cutting sheets. Drilling knives are used to make positioning holes, while grooving knives are used for slotting packaging materials.
