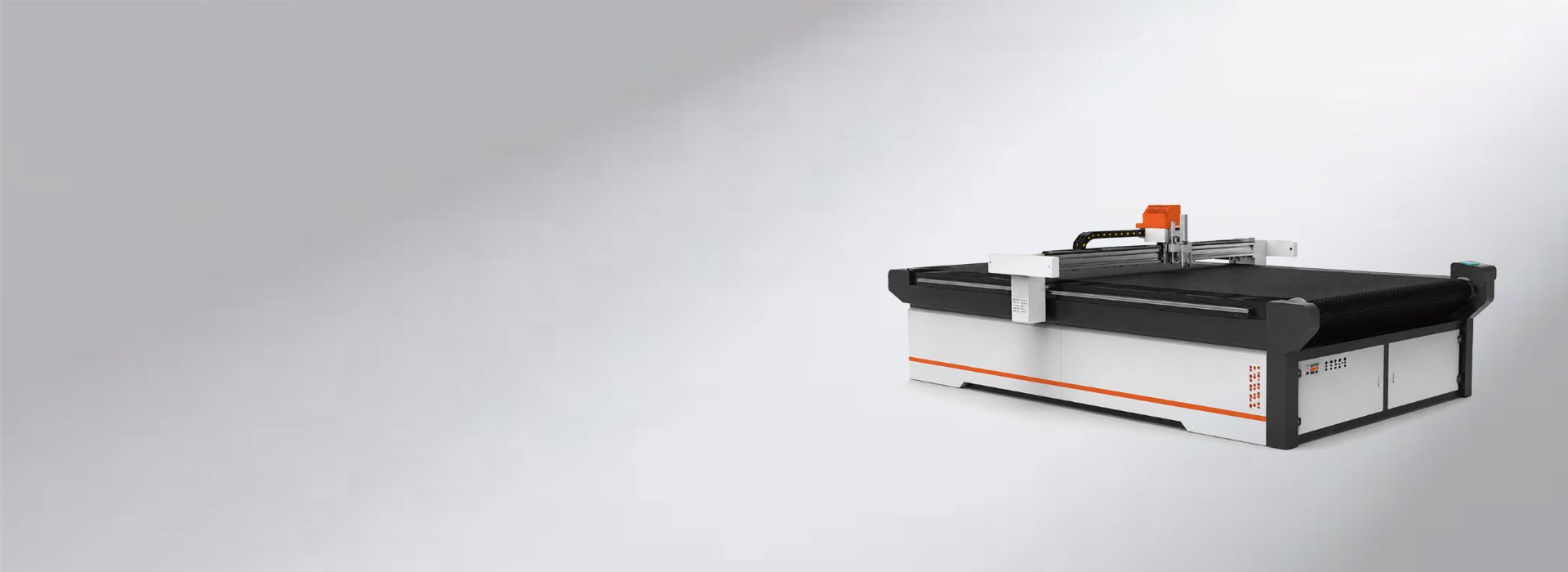

Large Format Cutting Machine Manufacturer
MC large-format cutting machines are CNC cutting systems designed for cutting large sheets. Our machines can cut an entire sheet with high precision in a single setup. There is no need for manual trimming or processing section by section. They automatically nest and cut materials, shortening your production cycle.
Our large-format cutting machines can cut various irregularly shaped sheets and high-precision patterns, replacing manual cutting. We also provide customized solutions. Please do not hesitate to contact us at any time if you have any requests.

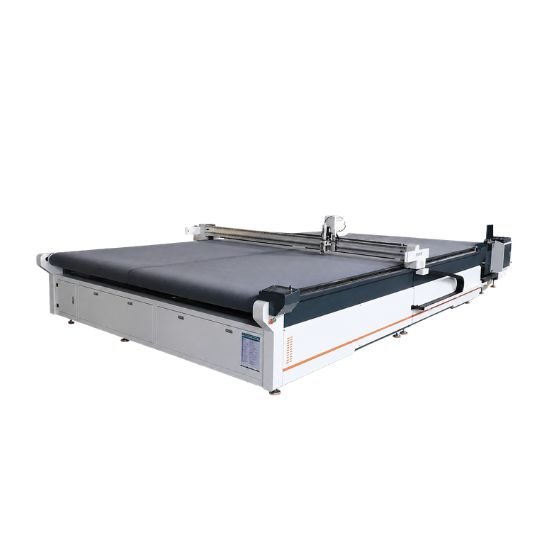

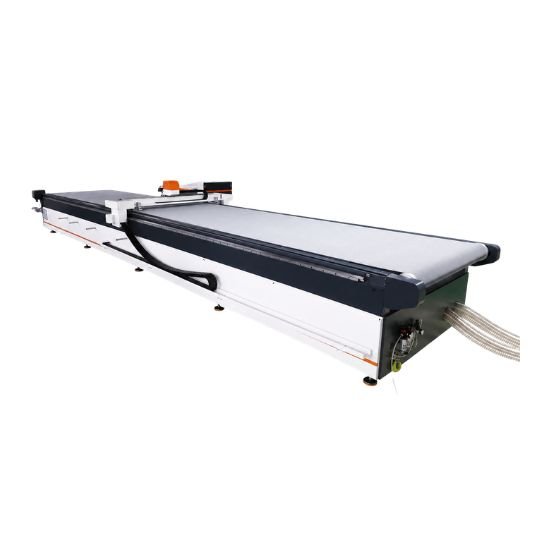

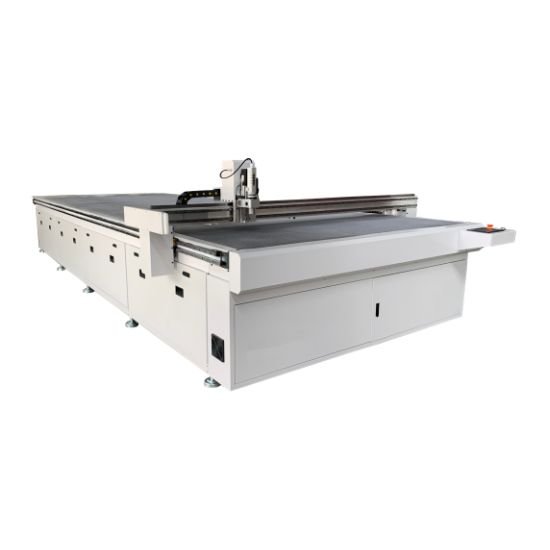

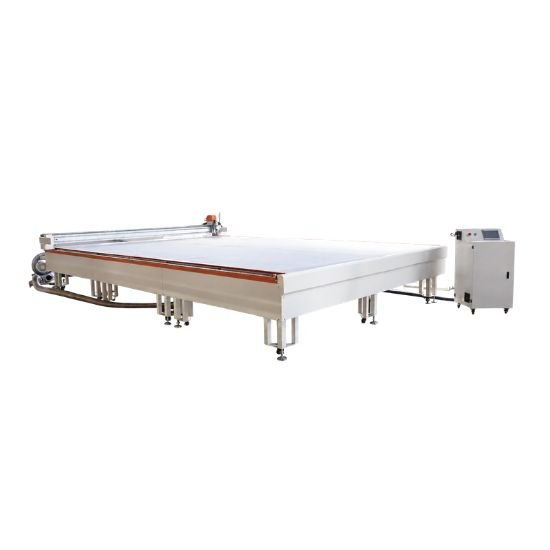

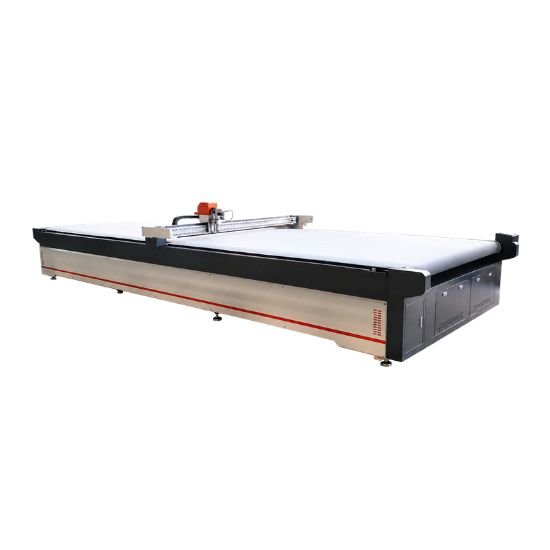

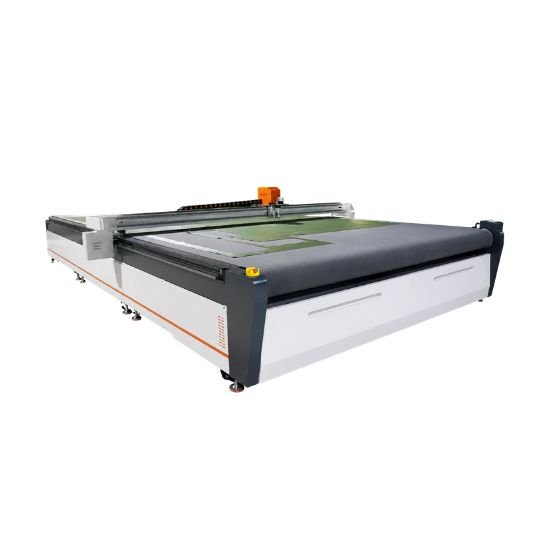

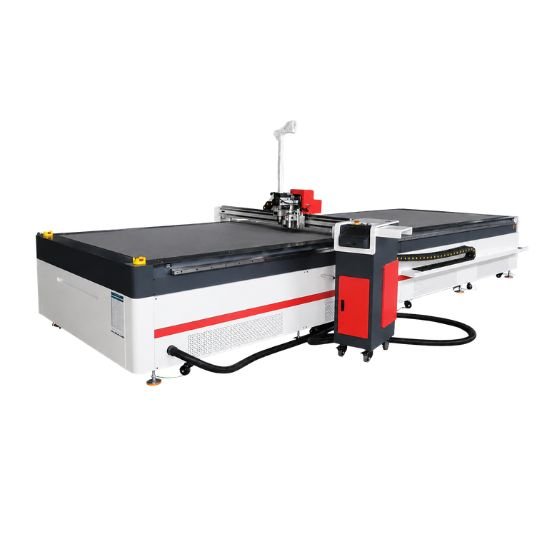

Types of MC Large Format Cutting Machines
Why Choose Our Large Format Cutting Machines?
One-piece cutting of oversized sheets, improved single-pass efficiency, and suitable for continuous production of large-format materials.
Smooth, burr-free cutting edges, no secondary sanding or polishing required.
Automatically recognizes patterns, improves cutting accuracy for irregularly shaped parts, and increases production efficiency.
High‑rigidity frame, low‑vibration operation, long‑term stability, extended service life.

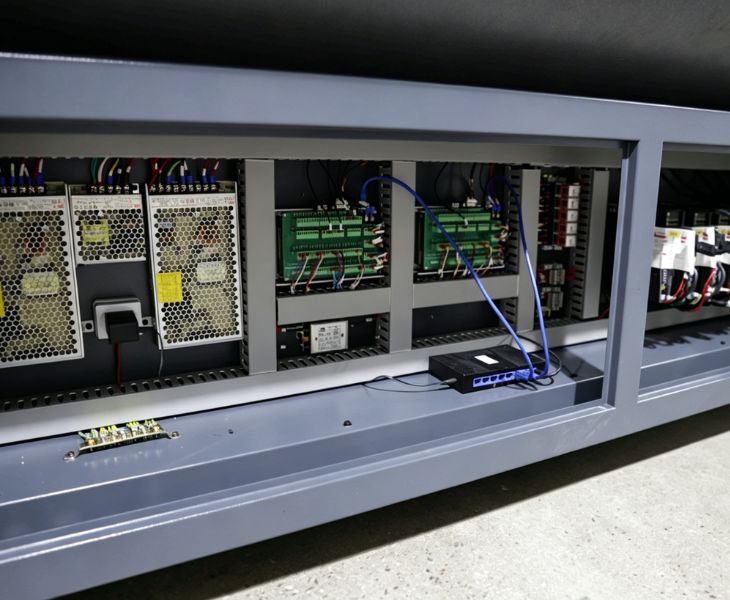

Stable Control Cabinet
To ensure your equipment runs continuously, our large-format cutting machines are equipped with a stable electrical control cabinet. It shields against electromagnetic interference, stabilizes voltage, and protects the circuitry, thus maintaining cutting stability and dimensional accuracy.

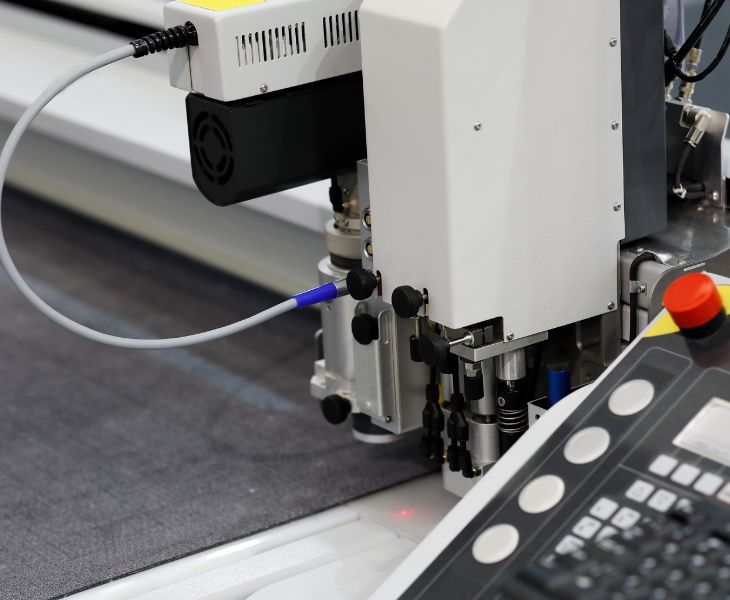

Efficient Dust Extraction System
Our large-format cutting machine is equipped with a powerful dust extraction system that removes dust and debris, keeping the work surface clean. With this system, debris won’t stick to your products during cutting, resulting in clean cuts. It also prevents debris from entering the machine’s electrical components, avoiding malfunctions.

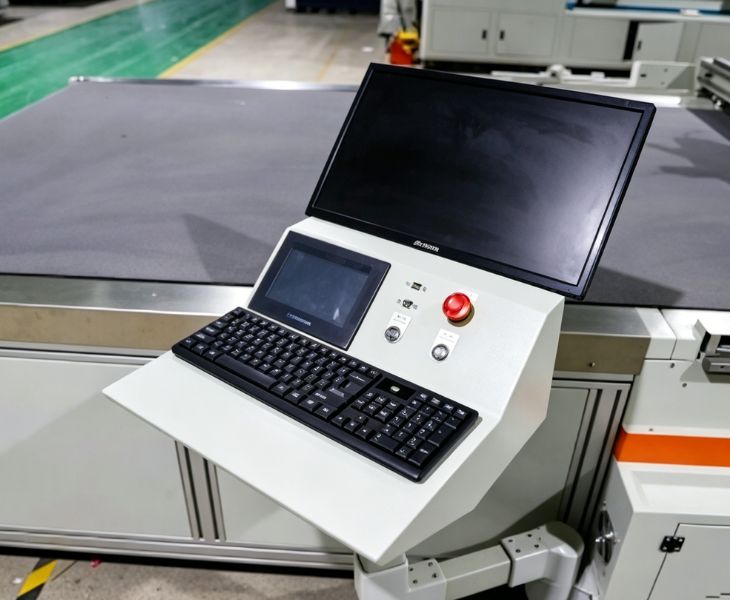

Smart Touch Screen Control
The MC large-format cutting machine features an intuitive touchscreen control system that makes operating it as easy as using a smartphone. You can import files and set parameters through the interface. The entire process is easy and requires no complex professional training. At the same time, you can monitor the machine’s operating status.

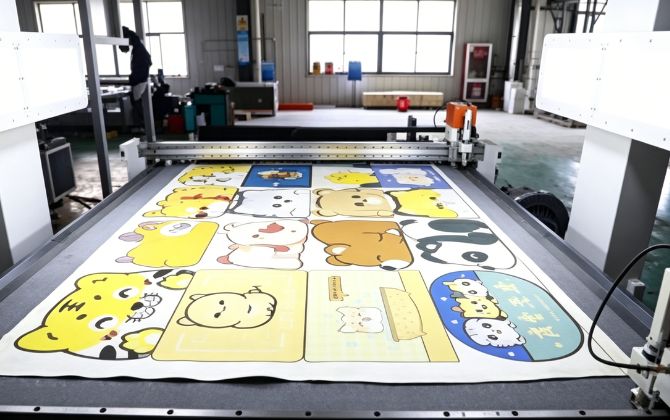

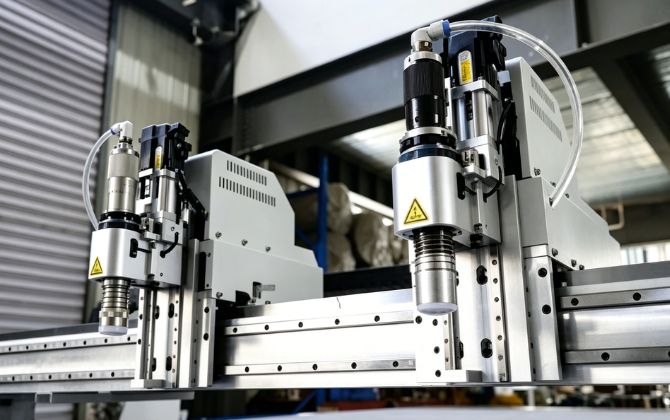

Multi-Tool Combined Cutting
Our large-format cutting machine is equipped with a multi-head cutting system that allows you to switch tools based on the material. It can cut flexible materials such as leather and foam, as well as cut rigid materials. With this system, you no longer need to change tools by hand, which significantly improves processing efficiency.
Additionally, you can complete all processes in one pass.
Applications of Large-Format Cutting Machines

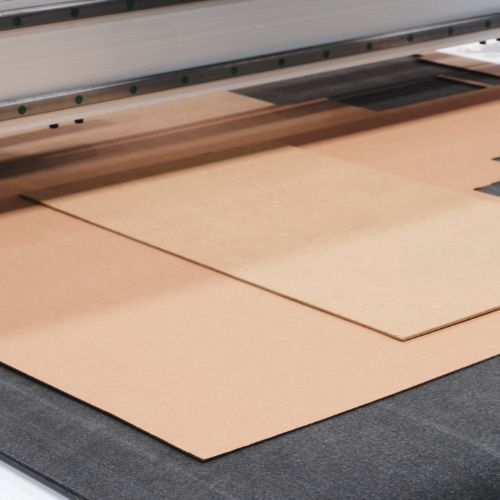

Packaging boxes, display stands, and similar products are usually large. With standard equipment, large sheets have to be cut into sections, which often results in misalignment at the joints. Our large-format cutting machine cuts large sheets in one pass.

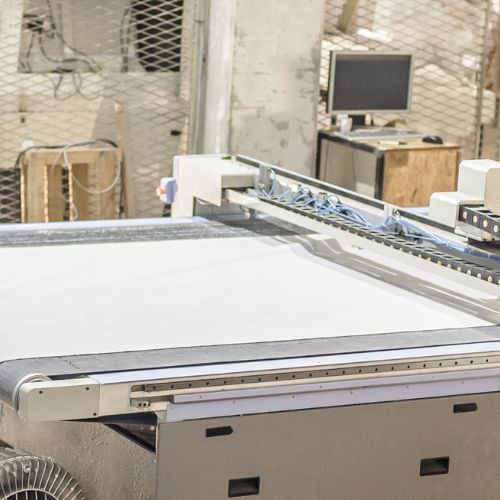

Most automotive interior leathers and fabrics are supplied in large sheets, requiring high cutting accuracy and efficient nesting. Our equipment features defect detection and automatic nesting that avoids material flaws.

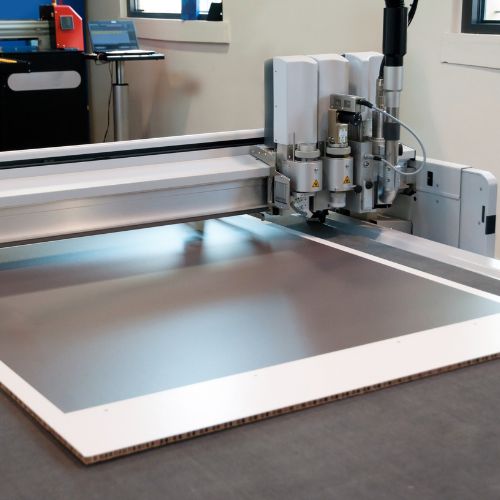

Upholstered furniture requires large-format panels, which cannot be processed in one pass with standard small-format equipment. However, MC large-format cutting machines support a wide range of materials in a single setup.
- Specification of Large Format Cutting Machines
| Item | Specification |
| Machine Model | MC1625 / MC1630 / MC2040 / Customized Models |
| Maximum Cutting Speed | 1.2 m/s |
| Positioning Accuracy | ±0.05 mm |
| Cutting Thickness (hard materials) | 0–8 mm |
| Cutting Thickness (soft materials) | Up to 50 mm |
| Supported Tools | Oscillating Knife, Rotary Knife, Pneumatic Knife, V-Cutter, Kiss Cutter, Creasing Wheel |
| Feeding System | Automatic Feeding System |
| Vision System | CCD Vision Positioning |
| Drive System | Servo Motor + Linear Guide Rail |
| Control System | Intelligent Touch Screen Control System |
| Supported File Formats | PLT, DXF, AI, DST |
| Voltage | 220V / 380V, 50Hz |
| Machine Structure | High-Rigidity Welded Steel Frame |
Our large-format cutting machines support an automatic feeding system. The standard configuration includes a belt conveyor and an automatic roll feeder for continuous feeding. With the automatic feeding system, a single operator can run 2 to 4 machines simultaneously, reducing labor costs for material changeover.
Compared with traditional manual nesting and cutting, our large-format cutting machines feature an intelligent nesting system. It optimizes material layout, reducing waste and cutting material costs by 10%–15%. This improves material utilization in mass production and reduces production costs.
The MC large-format cutting machine supports common file formats, including CDR, DXF, PLT, BMP, JPG, and PNG. You just need to import your design files into the control system. After setting the parameters, the machine will start cutting.
Our cutting machines are capable of processing a wide range of materials, from textile fabrics to industrial composites. Whether in rolls or sheets, materials with a thickness ranging from 0.5 mm to 50 mm can be processed. Moreover, if you want to process special materials, you can request sample testing.
Our large-format cutting machines generate some noise during operation. The oscillating blade produces 70 to 85 decibels when cutting. However, we offer noise‑reduction solutions: you can choose a soundproof enclosure or a low‑noise vacuum pump, which lowers the noise level by 10 to 15 decibels.
Our large-format cutting machines are compatible with CAD software. You can complete your design in CAD software, save the file in PLT, DXF, or AI formats, and then import it into our control system to generate cutting paths. The process is simple and convenient, and no manual programming is required.
Large-Format Cutting Machine Types
Large-Format Oscillating Knife Cutting Machine
Large-format oscillating knife cutting machines work by moving the blade up and down at high speed. The cutting process produces no smoke, so it is environmentally friendly. In addition, you can use it to cut multi-layer materials without damaging the material.
Large-Format Rotary Knife Cutting Machine
This cutting machine uses a high-speed rotating circular blade to handle sheet materials. It offers fast cutting speed and stable cutting performance, producing clean and straight edges. It is suitable for cutting large volumes of roll materials. When cutting roll materials, it prevents fraying and delivers high-quality finished products.
Large-Format V-Cutting Machine
The large-format V-groove cutting machine is used for cutting V-grooves and crease lines. This machine produces grooves of uniform depth, allowing sheets to be folded into three-dimensional shapes. Unlike manual grooving, this machine delivers higher precision. Therefore, you can use it to cut products that require bending, such as packaging boxes and display stands.
Large-Format Laser Cutting Machine
This cutting machine performs non-contact cutting using a laser beam. You can cut a wide variety of materials without the need to change tools. Furthermore, it performs both cutting and engraving simultaneously, resulting in higher production efficiency.
How Does a Large Format Cutting Machine Work?
Parameter Setting
First, based on the material type, you need to set parameters such as cutting speed, tool type, and cutting pressure on our control system. If you regularly produce the same product, you can save these parameters as presets for future use.
Material Loading
Next, place the sheet on the worktable. If you choose the automatic feeding system, the machine will automatically feed the sheet into the cutting area. At the same time, the vacuum suction device holds the sheet, preventing it from moving during cutting.
Toolpath Generation
The control system automatically reads your design file. Meanwhile, it optimizes the cutting sequence and path based on the cutting conditions, avoiding defective areas.
CNC Cutting Operation
After the cutting path is optimized, the machine runs along the programmed cutting path. This operation is controlled by the CNC system, ensuring cutting accuracy and dimensional consistency. When cutting is finished, you simply remove the finished piece.
How to Choose a Suitable Large Format Cutting Machine?
Choose Based on Material
Flexible materials such as leather and fabric can burn easily under heat. Therefore, we recommend using a large-format oscillating knife cutter. This machine uses a mechanical cutting method that protects the material from heat damage.
If you need to engrave large acrylic sheets or advertising boards, a laser cutting machine is a good choice. It produces very fine cut edges and is suitable for engraving small patterns.
Choose Based on Size
When choosing a cutting machine, the worktable should be larger than your material’s maximum size. This allows you to place the entire sheet on the table and complete cutting in one pass.
For materials with a width of 1 meter, it is recommended to choose a worktable that is at least 1.1 meters wide. If the worktable is too small, materials may need to be repositioned multiple times, which reduces cutting accuracy.
