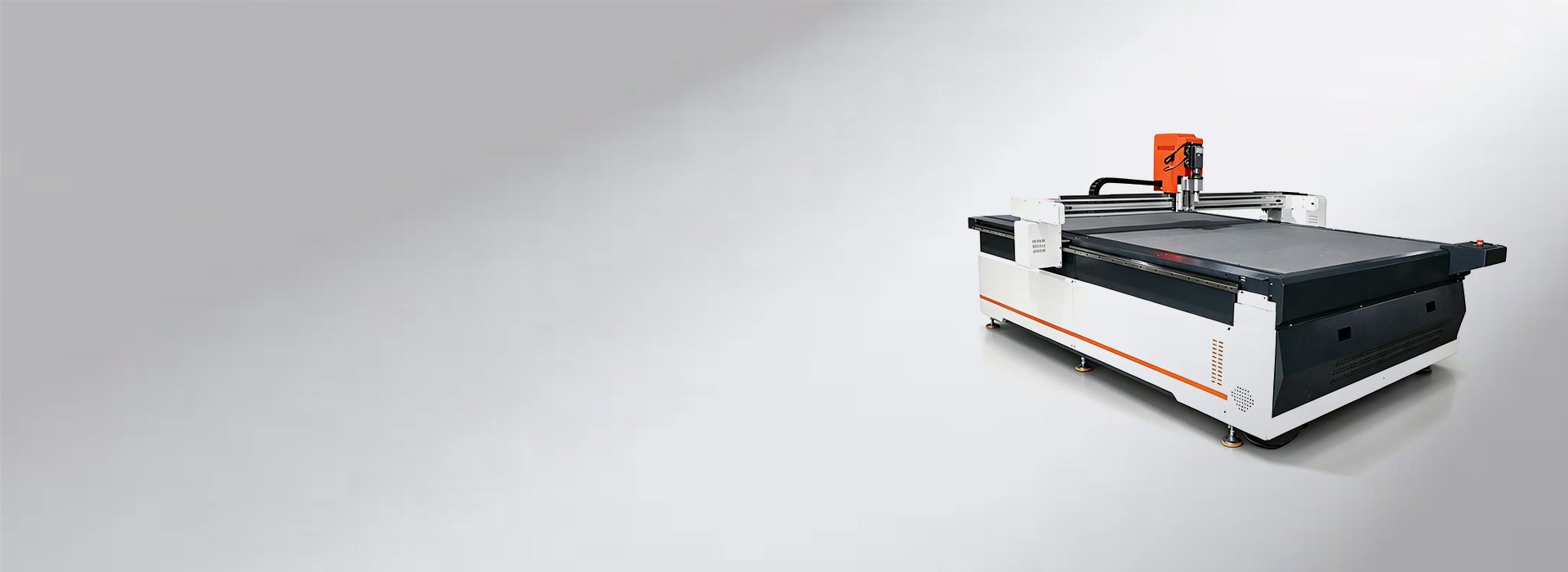

Your Reliable Foam Board Cutting Machine Supplier in China
MC foam board cutting machines use CAD software to design products, and then CAM systems convert designs into tool paths and G-code programs. And CNC systems read codes and control X/Y/Z axes to make cutting heads along preset paths.
Furthermore, our foam board cutting machines can be directly processed according to designed files without the need for cutting dies, and with CNC systems or digital software, they can also guarantee smooth cutting edges and the ability to accurately complete complex graphic processing.
As a reliable foam board cutting machine manufacturer, MC has abundant industry experience and OEM service. Our foam board cutting machines have a complete and reliable production process and strict quality control, which can provide your business with a safe cutting process.
Foam Board Cutting Machines We Provide
Features of the MC Foam Board Cutting Machine
Combined with CNC systems that can precisely control cutting paths based on the digital design files.
The fully automatic CNC systems can continuously perform cutting tasks without frequent manual intervention.
Combined with CAD/CAM digital designs, CNC control systems can automatically switch design files into machining paths.
Support parameterized adjustment, making devices automatically optimize cutting conditions for different materials.

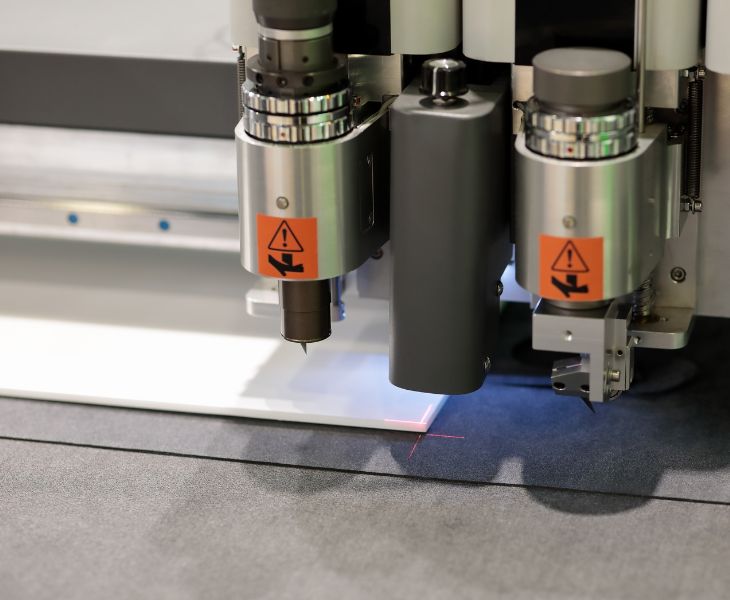

CNC Automatic Control Reduces Labor Costs
The entire cutting process is automatically controlled by CNC programs, and operators only need to import designs and set parameters to complete the machining, which can reduce reliance on manual operation and skilled technicians.
Meanwhile, high precision and stability can reduce human errors and rework rates, effectively reducing material waste and overall labor costs.

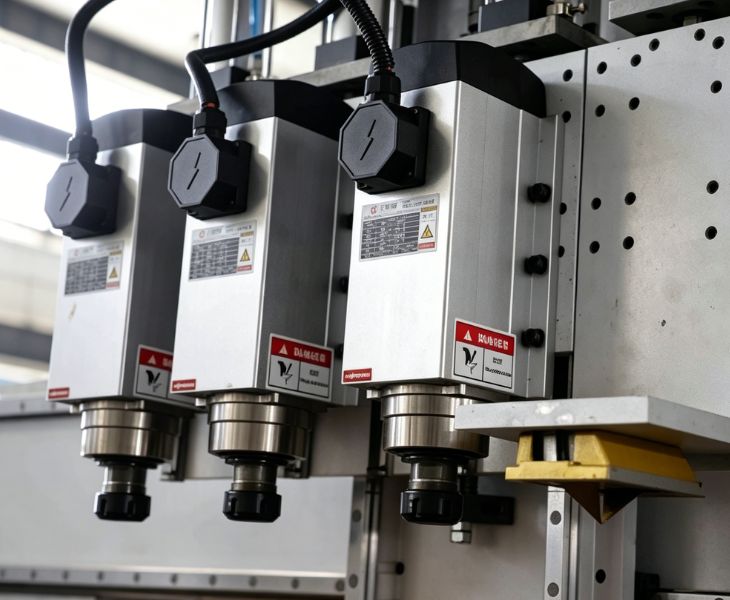

Multi-Tool Compatibility Supports Multiple Applications
Adopting modular CNC designs allows the use of different cutting tools on the same machine. Each tool is ideal for different foam materials and cutting requirements, which can precisely process foam boards with diverse densities and structures. This flexibility allows a single machine to handle multiple applications.

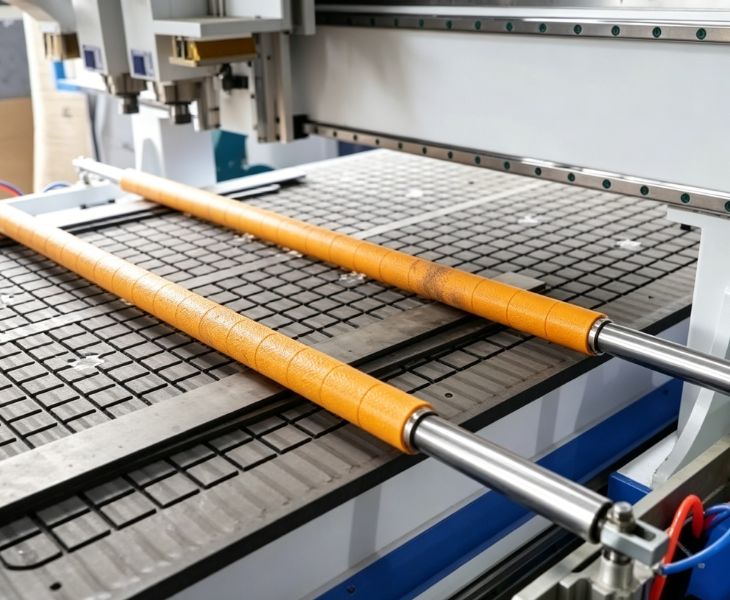

Industrial Structure Ensures Long-Term Durability
Manufactured with welded steel frames, reinforced components, etc, foam board cutting machines can endure continuous high-intensity operation without deformation.
In addition, key moving components like linear guides, ball screws, and servo systems are made of highly wear-resistant materials, thereby extending devices’ service life.
Applications of the Foam Board Cutting Machine

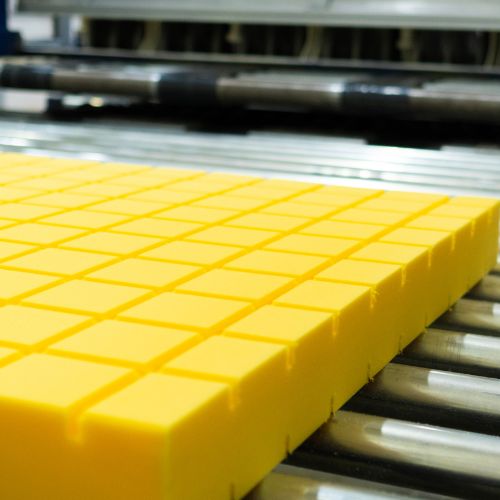

In the packaging industry, protective gaskets, cushioning trays, etc, require precise molding to fit various product dimensions while delivering reliable shock absorption.
Our foam board cutting machine can perform flexible processing of complex embedded packaging solutions across a range of product dimensions.

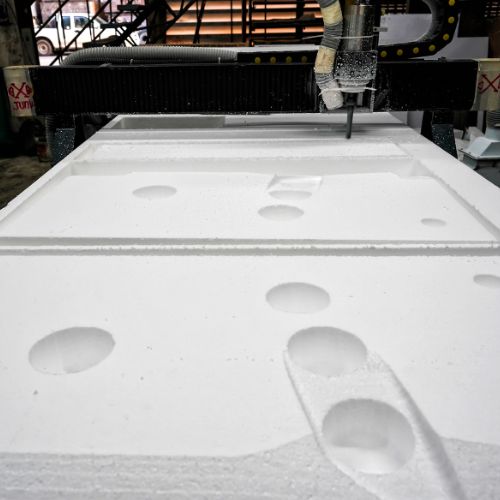

Advertising materials like 3D characters, display boards, and signs usually require precise shapes and smooth edges. Foam board cutting machines can cut and carve with high precision by CNC and multi-tool systems, to rapidly produce complex graphic designs and 3D products.

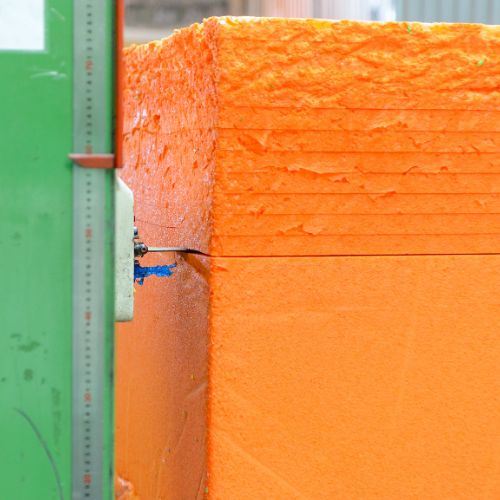

EPS, PU, and other foam insulation materials are often used for wall insulation, roof insulation, and pipe insulation in building insulation systems. Foam board cutting machines can cut out slope structures, special-shaped insulation blocks, etc., through CNC systems to satisfy different building design requirements.

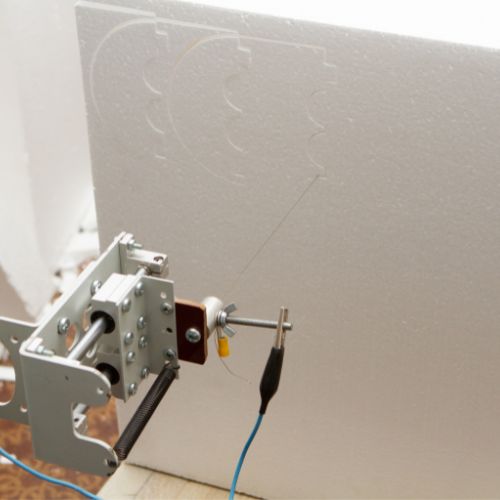

Interior bumpers, door panel inserts, etc., of the automotive parts require high precision, consistent quality, and customized shapes to meet different vehicle designs and safety criteria. The foam board cutting machine can perform an accurate cut through the CNC machine tool.

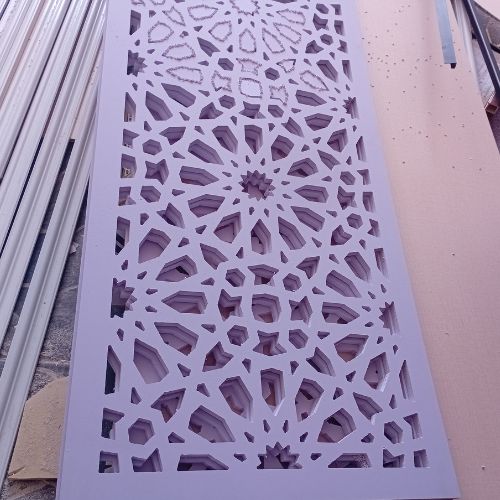

Furniture production usually requires customized protective packaging, design prototypes, and decorative foam elements, which must conform to specific shapes and keep consistent quality. Our foam board cutting machine can quickly produce fine furniture prototypes, customized cushions, and complex decorative shapes.

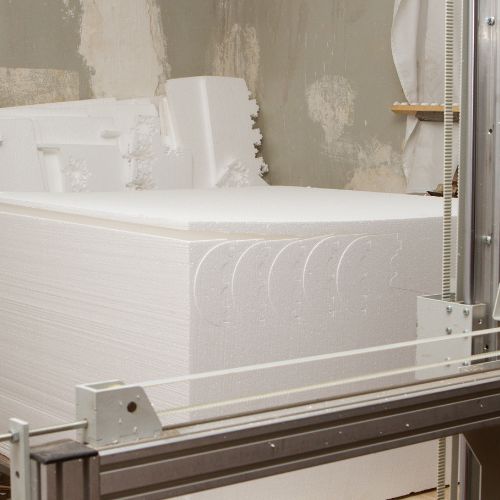

As aerospace and marine components like light structural parts, protective packaging, and so on, have very high requirements for safety and performance, foam board cutting machines can efficiently manufacture complex foam models, aircraft interior prototypes, and ship equipment buffer structures.

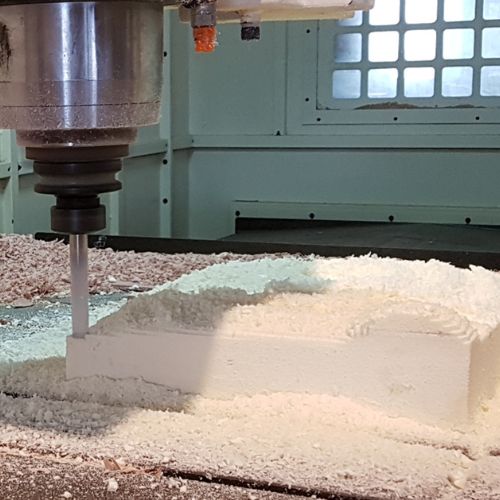

Mold prototype and protective core material structures need precision foam parts for mold manufacturing, prototype manufacturing, and protective support structures. The foam board cutting machine can process these materials with high precision through numerical control movement and interchangeable cutting tools.
- Specification
| Parameters | Specification |
| Cutting Accuracy | ±0.1 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Cutting Speed | 0–2000 mm/s |
| Cutting Thickness | 0–100 mm (Customized) |
| Voltage | 220V / 380V, 50/60Hz |

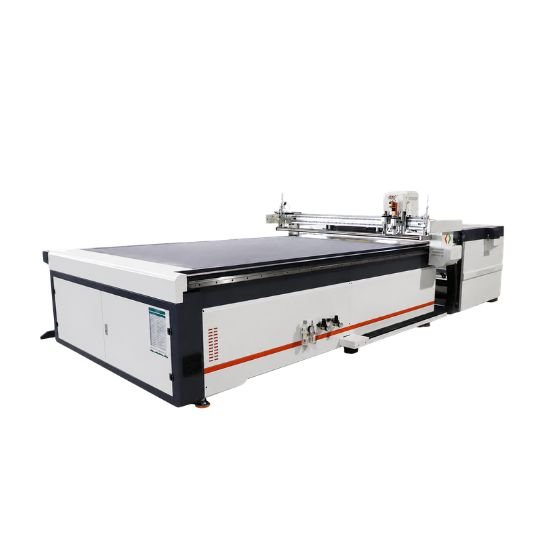

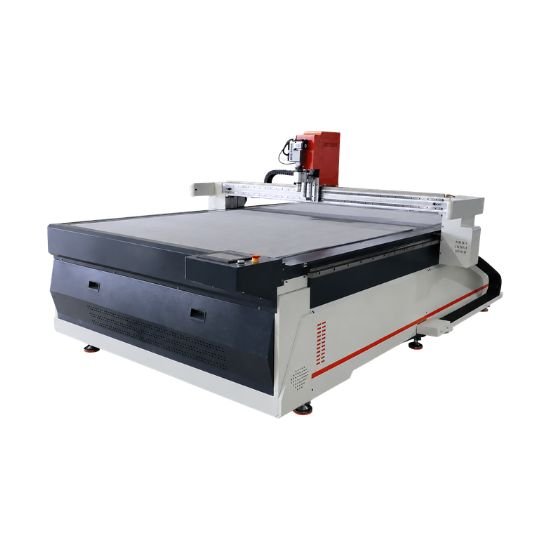

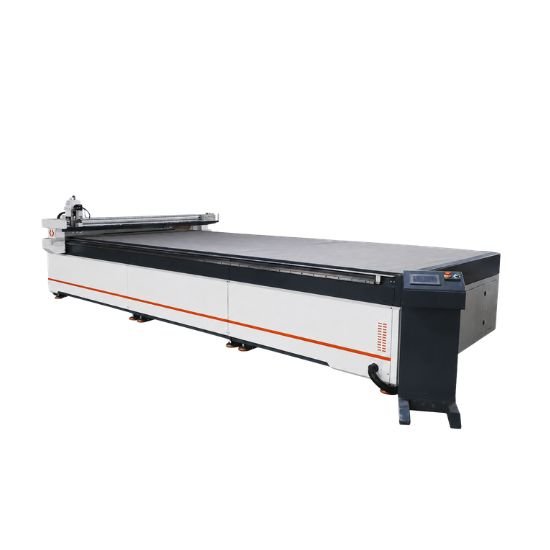

| Types | 1300*2500mm,1600*2500mm, 2000*5000mm |
| Supported Materials | EPS Foam, XPS Foam, EVA Foam, PU Foam, PE Foam, Sponge, PVC Foam Board |
| Control System | Intelligent CNC Control System |
| Power Supply | Customized |
The price of foam board cutting machines will vary significantly, depending on factors like machine types, cutting technology, automation level, etc.
Generally speaking, their price ranges from several thousand dollars for entry-level machines to over 100,000 dollars for fully automated industry CNC systems.
When maintaining foam board cutting machines, you should notice the following:
- Clean up foam chips and the worktable, and check tool wear.
- Lubricate guide rails and screws, check the tightness of belts and cable status, and clean the vacuum system’s filtration device.
- Calibrate the cutting accuracy, check the alignment of spindles or blades, and tighten mechanical connectors.
- Regularly replace vulnerable parts like cutting tools, bearings, and belts.
Foam cutters are usually handheld or basic tools that rely on manual operation to complete the cutting. While foam board cutting machines are industrial-grade CNC machines that can automatically control cutting paths by computer programming, and are often equipped with vacuum adsorption, multi-axis linkage, and other functions.
The foam board cutting machines’ accuracy of foam board cutting machines is primarily influenced by mechanical structural precision, CNC systems, and software control, etc.
Specifically, the rigidity and motion accuracy determine the stability of the foundation, the control system affects the accuracy of path execution, and so on.
The useful life of foam board cutting machines usually ranges from 8-15 years, depending on device quality, usage frequency, and maintenance level.
For instance, the industrial-grade devices have a longer lifetime under normal maintenance and stable production conditions, while high-intensity use or insufficient maintenance can shorten the service life.
The typical cutting tolerance of foam board cutting machines generally ranges from ±0.1 mm～±0.5 mm, which depends on the device’s grade, control systems’ accuracy, and processing conditions.
Foam cutting blades or wires are consumable parts, and their replacement cycle depends on usage intensity and material conditions.
Ordinarily, blades are replaced every 1-4 weeks during normal production, but high-intensity use is more frequent; Wires can usually be used for 2-8 weeks, but they should be replaced in time when oxidation, deformation, or a decrease in cutting quality occurs.
What Is a Foam Board Cutting Machine?
The foam board cutting machine is an automated cutting device integrated with CNC systems, which uses special cutting tools (the most common are swinging knives or drag knives) to cut foam materials according to digital design files.
These devices do not use blades or rulers for manual cutting, but instead cut according to the programmed tool path generated by CAD/CAM software, achieving high precision and consistent output.
Foam Board Cutting vs Laser Cutting vs Die Cutting vs Manual Foam Cutting
| Features | Foam Board Cutting | Laser Cutting | Die Cutting | Manual Foam Cutting |
| Cutting Precision | High | Very High | Medium–High | Low |
| Cutting Speed | Fast | Fast | Very Fast (Mass Production) | Slow |
| Automation Level | High | High | Medium | Low |
| Complex Shape Cutting | Excellent | Excellent | Limited by Die | Poor |
| Material Waste | Low | Medium | Medium | High |
| Edge Quality | Smooth & Clean | May Burn or Melt | Clean | Uneven |
| Smoke / Dust Generation | Low | High Smoke on Foam | Low | Low |
| Maintenance Cost | Low | Medium–High | Medium | Low |
| Multi-Material Compatibility | Excellent | Medium | Limited | Limited |
| Tooling Requirement | No Mold Needed | No Mold Needed | Requires Die Mold | No Mold |
| Best Application | Foam Packaging, EVA, Insulation | Thin Precision Cutting | Fixed Large Orders | Simple Manual Work |
How to Choose the Right Foam Board Cutting Machine?
Define Your Application
You should clarify your business application needs. Different industries, materials, and production goals require different cutting techniques. Choosing the wrong machine may result in low efficiency, poor cutting quality, and increased production costs.
For instance, if your business processes a variety of materials, in order to obtain greater flexibility, you’d better choose multi-functional CNC foam board cutting machines.
Check Material Type & Thickness
You need to figure out what type or thickness of foam materials your company wants to cut. Only when devices and material characteristics match can incomplete cutting, rough edges, and material deformation be avoided, while improving production efficiency and reducing material waste.
Choose the Right Cutting Technology
The key to selecting the right foam board cutting machines is to first determine the cutting technology route according to the processing needs, and then match the corresponding device type.
If your company wants to cut EPS or XPS and other foam materials and achieve clean, dust-free complex contour cutting, CNC hot wire cutting technology should be preferred.
Evaluate Precision & Cutting Quality
To select a suitable foam board cutting machine according to the precision and cutting quality, first of all, you should clarify the precision level and edge cleanliness criterion of the products your company produces.
In general, higher precision and better surface finish require more advanced CNC control systems, more robust machine structures, and higher quality motion control systems.
Consider Production Efficiency
You need to consider the production of your business. For continuous mass industrial production, CNC foam board cutting machines equipped with multi-head or automatic feeding functions are the best choice, because they can significantly reduce manual labor and increase output.
Software Compatibility
When choosing foam board machines, you should focus on the software compatibility, which can guarantee that devices can stably support common CAD/CAM software and smoothly import DXF or G-code files, so as to achieve seamless conversion from design to processing.
Machine Size & Workspace
The working stroke of devices needs to be determined based on the maximum size of processed materials and the actual processing areas.
At the same time, it’s necessary to consider the spatial layout and operational convenience of factory workspace, guaranteeing that devices meet processing sizes while also considering production efficiency and safety.
