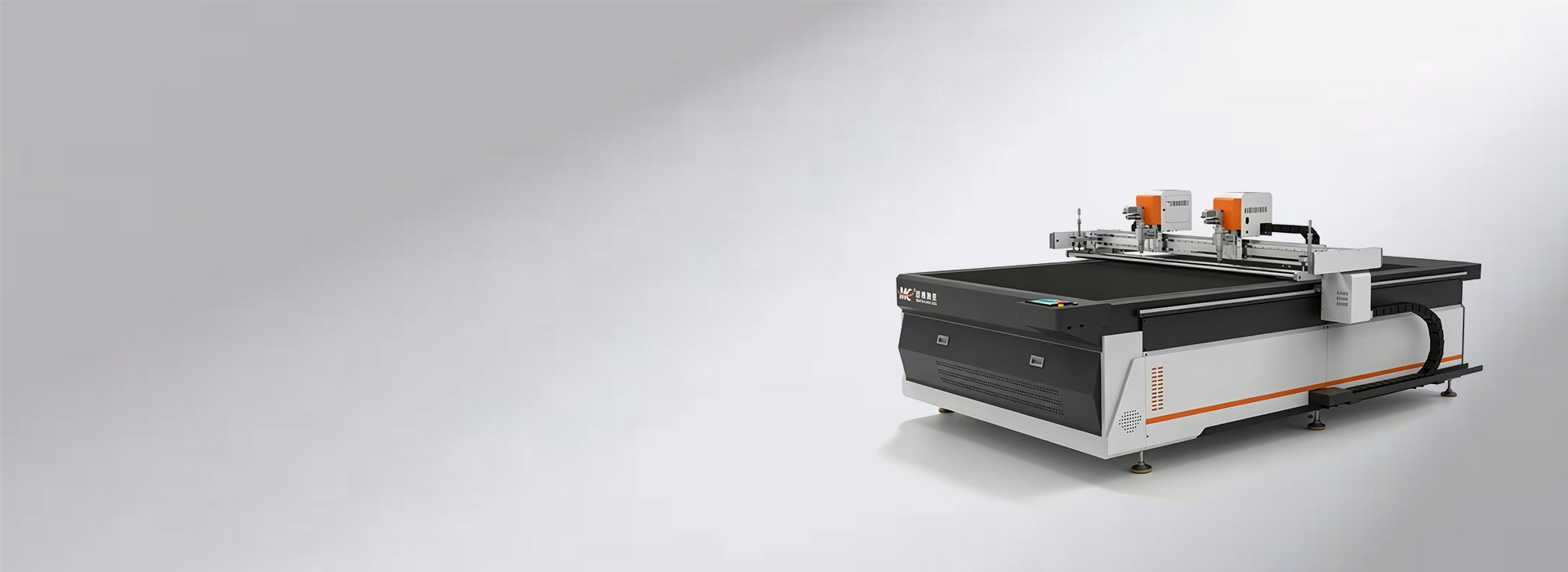

Your Reliable Gasket Cutting Machine Supplier in China
The MC gasket cutting machine uses CAD software to design gasket graphics, and the CAM system generates cutting paths and control programs. The cutting head is then driven by the CNC system to automatically run according to the preset path, performing high-precision cutting on rubber and other sheets. It is an industrial CNC device used for producing precision gaskets. Our device can effectively improve processing accuracy and production efficiency, replace traditional manual cutting, reduce labor costs, and minimize material waste. In addition, the device supports functions like automatic nesting, precise cutting, and complex irregular machining.
As a specialized gasket cutting machine manufacturer, MC has rich industry and innovative R&D experience, and OEM services. We can guarantee that all of our gasket cutting machines pass through rigorous quality benchmarks to supply you with a secure, reliable, and highly accurate cutting process.
Gasket Cutting Machine Classified by Function Type
Features of the MC Gasket Cutting Machine
This machine uses CNC systems combined with CAD/CAM digital programming, which can guarantee accurate tool paths without human errors.
A gasket cutting machine can maximize the utilization of raw materials, and there is no need for trial cutting or rework during its cutting process.
Using CNC/CAD digital control, it is possible to quickly switch between different designs without changing the mold.
It is highly automated, and one operator can manage multiple machines without the need for skilled manual cutting or frequent supervision.

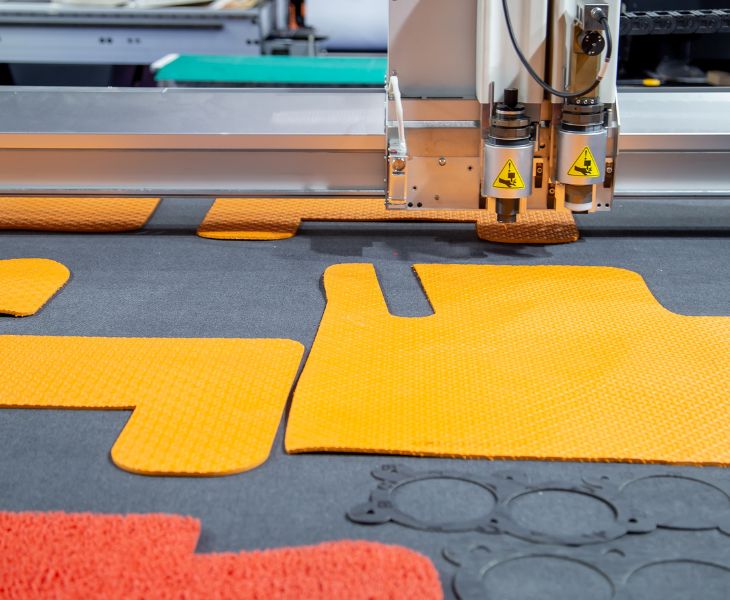

Complex Shape Capability Keeps Consistency
The gasket cutting machine can accurately process complex gasket geometries, including irregular shapes, porous structures, special-shaped flanges, and fine curves that are difficult to achieve manually. This device can guarantee consistency, accuracy, and repeatability for each cutting by CNC or digital control systems.

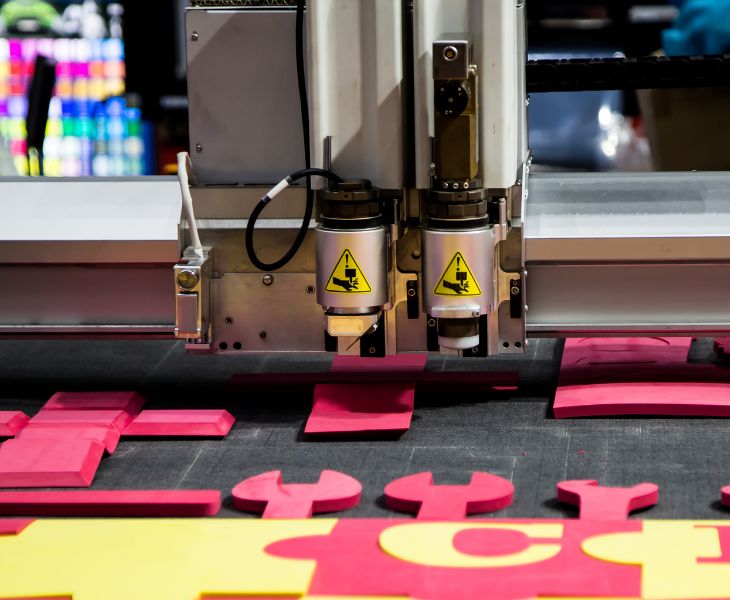

Wide Material Compatibility Satisfies Multiple Industries
Our machine has extremely strong material compatibility; it can process various soft and semi-rigid gasket materials, including rubber, silicone, graphite, foam, composite materials, etc. So it can satisfy the diverse needs of various industries like automotive, chemical, and general manufacturing, etc.

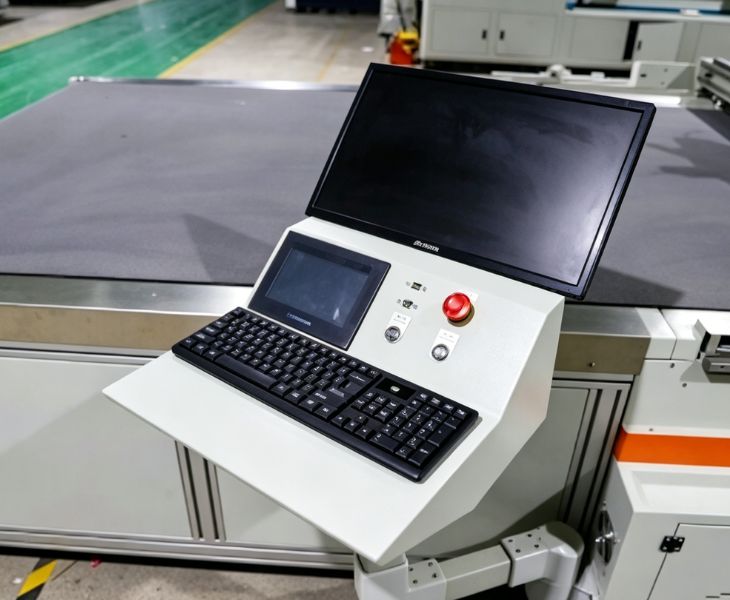

No Mold Required Lowers Costs
You can directly import CAD drawings for real-time production without the need to manufacture molds. This can greatly reduce mold costs, shorten delivery cycles, and provide higher production flexibility, making it especially suitable for manufacturers who want to engage in small-scale production.
Applications of the Gasket Cutting Machine

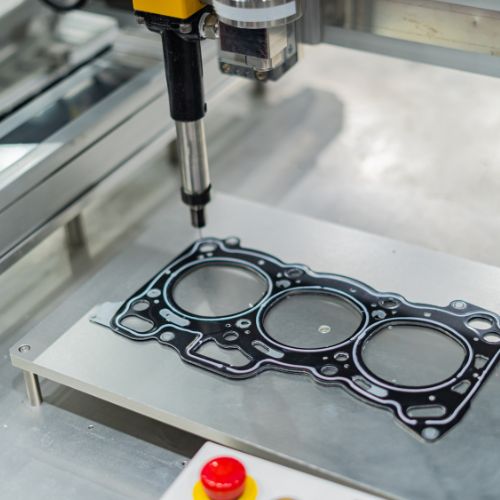

The gasket cutting machine can efficiently and accurately cut various kinds of sealing gaskets required for automobiles, like rubber, graphite, PTFE, and other materials in engine, transmission, and battery systems.
The industry has extremely high requirements for sealing performance and safety; a gasket cutting machine can improve sealing reliability and reduce leakage risks under high-pressure, high-temperature, and corrosive conditions.
Because this industry usually involves multiple specifications, non-standard shapes, and small batch production, the gasket cutting machine can realize fast, mold-free, high-precision cutting by CNC or numerical control methods, obviously improving production efficiency.

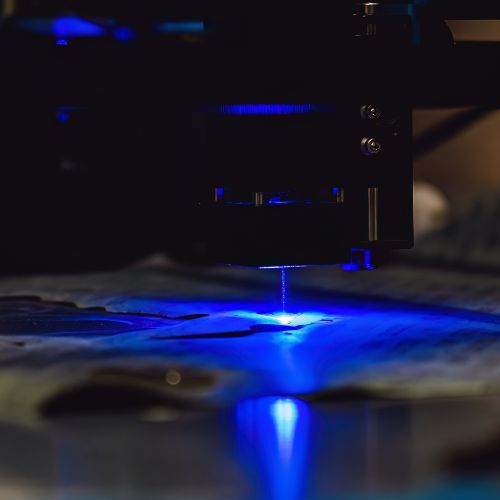

The gasket cutting machines can realize high-precision machining without molds by CNC or laser methods, quickly adapting to conductive rubber, foam, and insulation materials, thus meeting the requirements of electronic devices for sealing reliability and production flexibility.

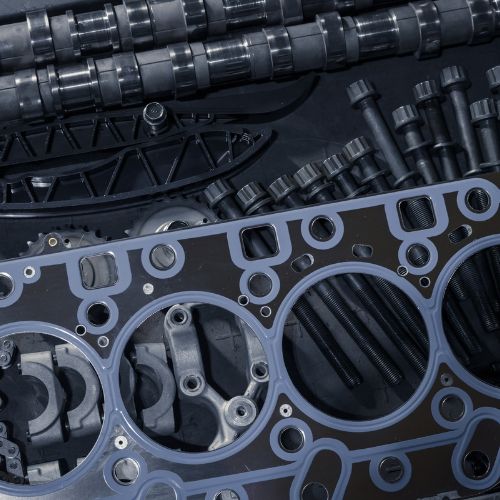

The gasket cutting machine can achieve strict tolerance control and rapid customized production, so it can satisfy the aerospace industry’s requirements for high reliability and high consistency.

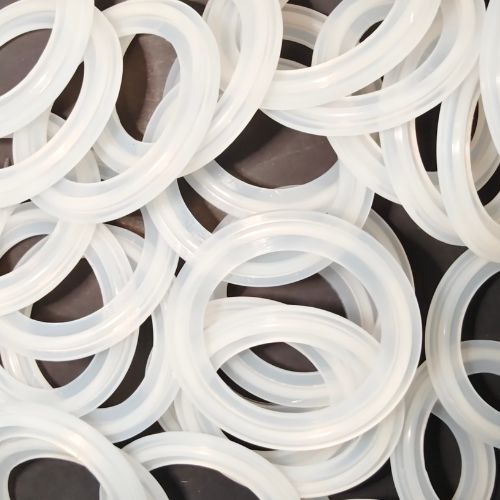

Our gasket cutting machine can quickly process materials like PTFE, graphite, and chemical-resistant rubber to satisfy the corrosion resistance, cleanliness, and safety requirements of the chemical and pharmaceutical industry for seals.

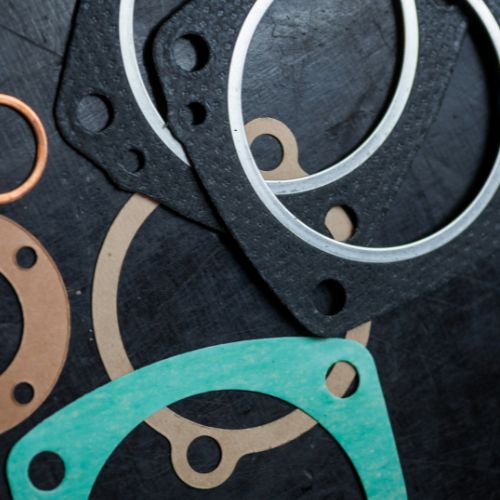

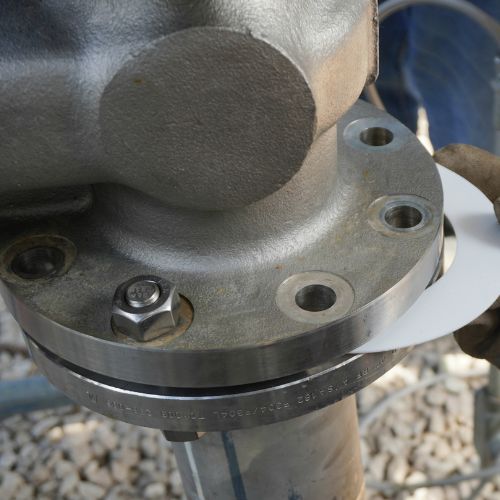

Industry devices heavily rely on sealing gaskets to prevent liquid, gas, and oil pressure leaks. The gasket cutting machine is capable of high-precision cutting of various sealing materials and rapid processing of gaskets of different specifications and complex shapes.
- Specification
| Parameters | Specification |
| Cutting Accuracy | ±0.1 mm |
| Cutting Speed | 100-1600 mm/s |
| Cutting Thickness | 0.1 mm – 50 mm |
| Control | CNC+CAD/CAM/PLC/Servo drive |
| Power | 220V/380V，50–60Hz |

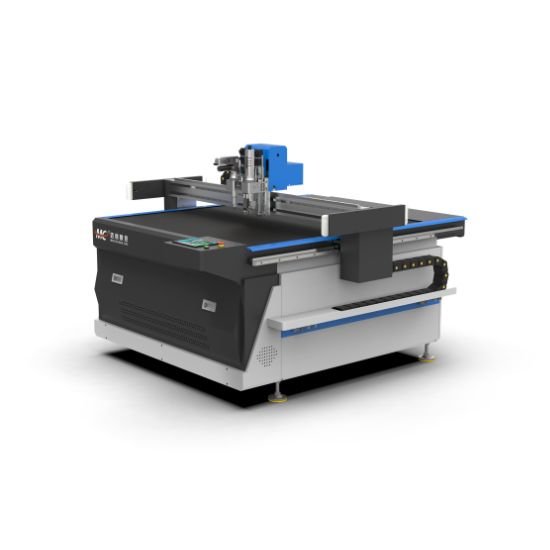

| Machine Size | 1313(1300*1300mm) |
Our machine can cut various sealing materials, including rubber (like ethylene propylene diene monomer (EPDM), nitrile rubber (NBR), silicone), foam materials, non-metallic gaskets (like polytetrafluoroethylene (PTFE), graphite, and fiber composites), and some plastics and reinforced composites.
No, they each have their own advantages, and there is no absolute ‘better’.
The gasket cutting machine is suitable for small batch, multi-variety, and customized production, without the need for mold opening, and has high flexibility; while the die cutting machine is suitable for large-scale normalizing production, with high efficiency.
The lifetime of the gasket cutting machines is usually about 8-15 years, depending on device quality, usage intensity, and maintenance.
The common devices are shorter, while the high-end CNC devices can last longer with good maintenance, but vulnerable parts like cutting tools need to be replaced regularly.
The accuracy of the modern gasket cutting machines is usually very high, with ordinary ranging from ±0.01 mm to ±0.1 mm.
A high-end device has higher precision in thin material processing and can satisfy the requirements of most industrial seals for dimensional consistency and sealing performance.
Gasket cutting is a specialized processing method used in the production of sealing gaskets, mainly processing materials like rubber and graphite. CNC cutting is a computer-controlled cutting technology that can be used for various materials and industries.
To make the gasket cutting machine operate stably for a long time, you need to periodically clean up the dust, rubber debris, and cutting residue, keep the lubrication of the guide rail and key components, replace tools on time, and calibrate the device.
What Is A Gasket Cutting Machine?
The gasket cutting machine is a processing device used to cut sheet sealing materials like rubber, graphite, PTFE, etc., into the required shapes and sizes based on the design pattern. It can usually realize precise and highly efficient automation or semi-automation production by CNC vibration knife, die-cutting and stamping, or laser.
How to Choose the Right Gasket Cutting Machine?
Select Based On Production Volume
For small batch or sample production, we suggest choosing a template CNC gasket cutting machine. This type of device does not require mold opening and has a fast changeover speed.
For medium to high output production, choose fully automatic CNC gasket cutting machines equipped with automatic feeding, continuous conveying platforms, or multi-blade systems. These devices can realize continuous processing, reduce manual intervention, and obviously improve production efficiency.
For large batches and long-term fixed specifications, your company can consider choosing high-speed die-cutting or industrial-grade multi-layer cutting devices that can reduce individual production costs and increase production capacity.
Select Based On Materials
Because different materials have obviously different hardness, flexibility, thickness, and heat resistance, it’s necessary to fit different cutting methods and tools:
The flexible materials like rubber, silicone, foam, etc., are more fit into CNC reciprocating cutting, which can realize cold cutting effects without burning edges or deformation.
The higher hardness materials like PTFE, fiber composite materials, etc are more fit processing with pneumatic vibration knives, high-power servo knives, and even milling cutters to guarantee cutting accuracy and edge quality.
For thicker or higher hardness composite materials, waterjet cutting can also be chosen to avoid material delamination or thermal deformation.
Select Based On Accuracy Requirements
If your company wants to make common industrial seals, standard CNC vibration knife cutting machines can be chosen, because they usually achieve a machining accuracy of around ± 0.1 mm.
The industries with high sealing properties, like automobiles, aerospace, etc, we suggest your company choose high-precision CNC gasket cutting machines that use high rigidity frames, servo drive systems, and vacuum suction platforms, with a repeat positioning accuracy of ± 0.01 mm.
Select Based On Automation Level
If you are a company with a small batch, stamping, or budget limited, choose a semi-automatic or manual gasket cutting device, because this type of device is easy to operate, has low investment costs, and is fit for multi-variety, small-scale production.
And for medium to large factories or continuous mass production conditions, the fully automatic CNC gasket cutting machine, which is equipped with automatic feeding, CAD automatic typesetting, vacuum adsorption platform, and multi-blade cutting system, can be chosen, because it can realize continuous production and greatly reduce manual intervention.
Select Based On Budget
You can choose manual or entry-level CNC gasket cutting machines if your factories are small with lower budgets or sampling needs, because their investment costs are lower.
With a medium budget company, we recommend you choose a mid-range CNC device with a vacuum adsorption platform, automatic typesetting, and a multi-tool system, which can support cutting accuracy, efficiency, and material utilization.
And if your company has enough budget and wants to seek high efficiency and automated production, choose a gasket cutting machine that has automatic feeding, high-precision servo systems, and intelligent CAD/CAM software.
