Your Reliable CCD Vision CNC Knife Cutter Supplier in China
The MC CCD vision CNC knife cutter is designed for high-precision contour cutting of printed graphics and flexible materials. It automatically recognizes printed graphics, registration marks, and complex contours, then generates optimized cutting paths without manual alignment, enabling fast and highly accurate contour cutting.
The intelligent nesting software maximizes material utilization and reduces production waste by optimizing cutting layouts automatically. It is ideal for processing printed textiles, leather, foam, packaging materials, and other flexible materials requiring high-precision contour cutting. Besides, the projection preview system and large-format CCD vision positioning technology can guarantee precise alignment of printed materials and rapid pattern verification, guaranteeing excellent quality and production efficiency.
Contact us today for free material proofing and exclusive cutting solutions. Partner with MC to achieve higher cutting accuracy, improved production efficiency, and lower manufacturing costs with intelligent digital cutting solutions.

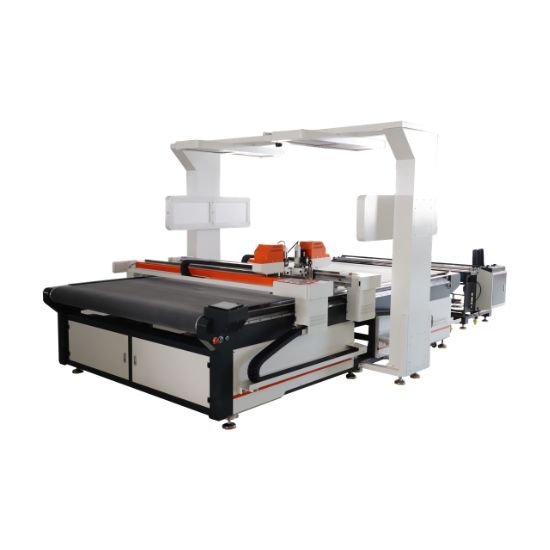

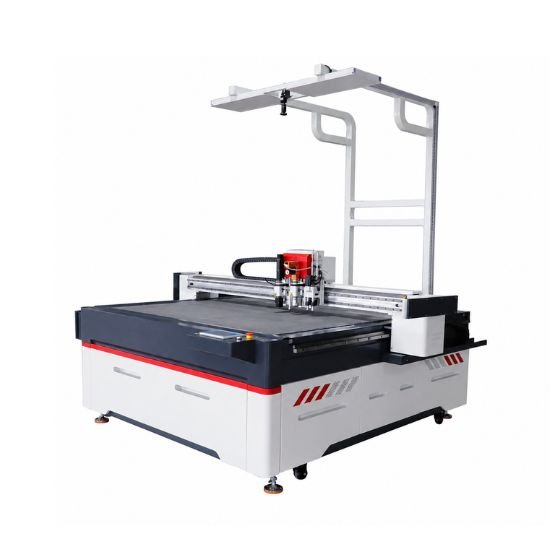

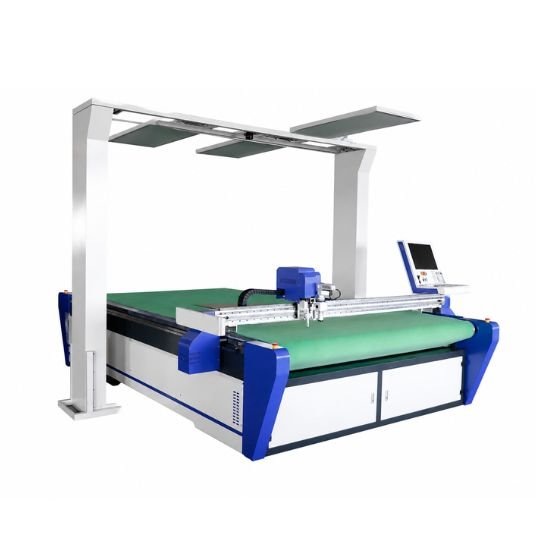

Types of MC CCD Vision CNC Knife Cutter
Features of the MC CCD Vision CNC Knife Cutter
The high definition vision system automatically detects positioning marks on the printed material, guaranteeing the precision of cutting.
Clean, burr-free cutting, no burning or dust contamination, suitable for applications such as foam, leather, fabric, and packaging cutting.
Automatically generates cutting paths and simplifies machine operation with an intuitive interface.
We support full-area scanning and automatic edge search, and can intelligently handle the contours of irregular graphics and correct errors.
Supports oscillating knives, kiss-cut tools, creasing wheels, V-cut tools, routing spindles, and punching tools.
It adopts a high-performance servo drive system, precision linear guide, and rack transmission structure, which can achieve high-speed operation and precise positioning.

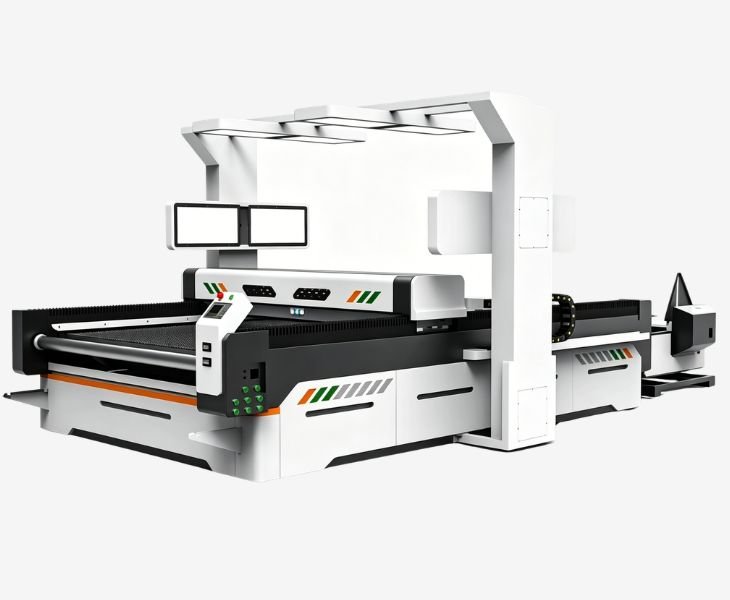

Heavy-Duty Welded Steel Frame
The MC CCD vision CNC knife cutting machine adopts a heavy-duty welded steel structure bed with optimized internal reinforcement structure. After stress-relief heat treatment, it can fully release welding stress. The high-rigidity body can effectively suppress vibration in high-speed operation, maintain stable accuracy over the long term, and guarantee long-term stability for your continuous industrial production.

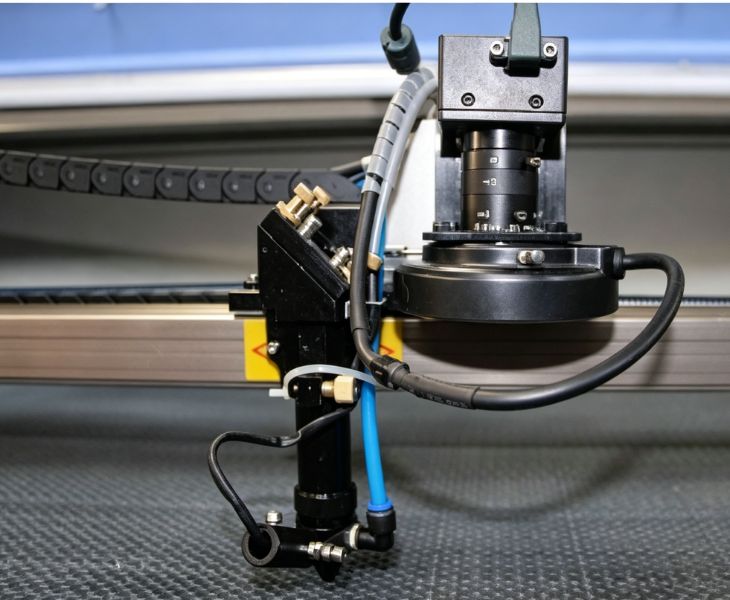

Dust-Free Burr-Free Cutting
A high-speed vibrating knife can easily cut a variety of flexible materials such as foam board, PVC, leather, cardboard, etc. Compared with laser cutting, the MC CCD vision CNC vibrating knife cutting machine is smoke-free and burn-free during the cutting process, can obtain flat and smooth cutting edges, and can effectively improve your workshop production environment.
Why Choose the MC CCD Vision CNC Knife Cutter for Cutting?
- Professional CNC Manufacturer: MC is a reliable supplier of CNC cutting solutions with 15 years of global export experience.
- Strict Quality Control: Our factory and equipment are SGS and FDA certified. Each machine is fully tested before shipment to guarantee stable performance.
- Technical Support and Training: We provide complete operating manuals, video guidance, and remote technical support.
- Customizable Solutions: Work sizes, tools, and configurations can be customized to suit different industries.
CCD Vision CNC Knife Cutter for Different Industries

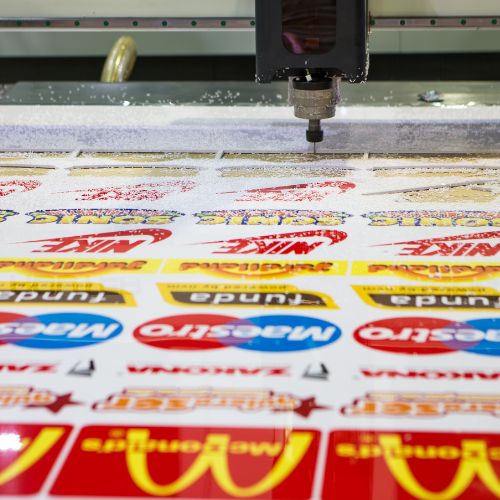

In the advertising industry, the MC CCD vision CNC knife cutter can accurately complete the printed graphic contour cutting and is suitable for car stickers, self-adhesive, PVC display boards, flexible advertising films, KT boards, and various advertising display materials.

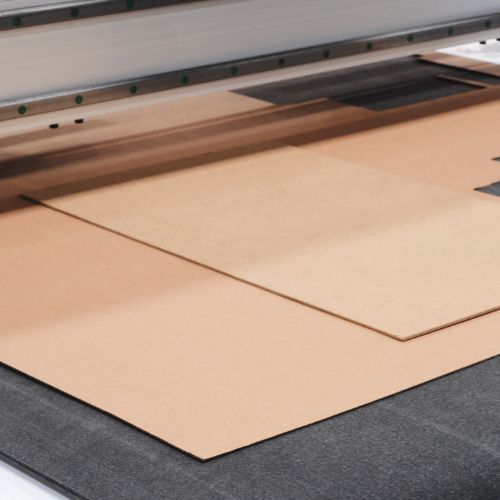

MC CCD vision CNC knife cutter can quickly complete packaging sample making, small batch packaging production, and special-shaped carton cutting. It is suitable for corrugated paper, cardboard, color boxes, and packaging prototyping.

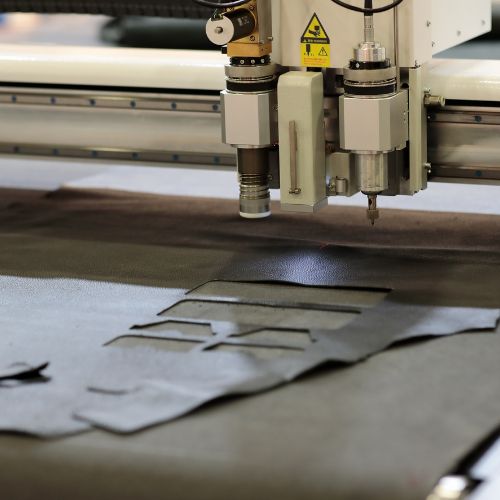

The CCD vision system equipped with an MC CCD vision CNC knife cutter can automatically compensate for material deformation after printing and heat transfer, and is widely used in bag, clothing, and home textile product processing.

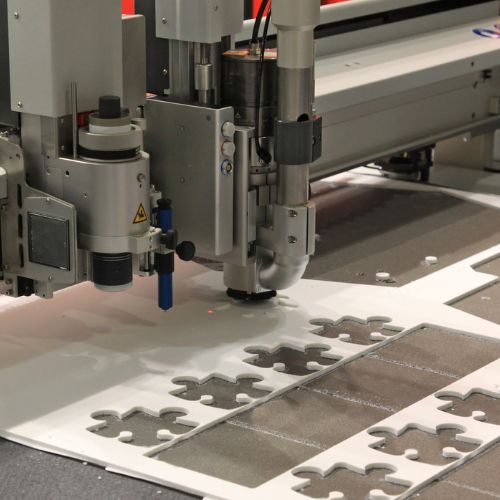

MC CCD vision CNC knife cutter’s CCD vision positioning system can guarantee positioning consistency in multiple processes and double-sided processing, and is suitable for processing precision industrial products such as electronic gaskets and insulation materials.
- CCD Vision CNC Knife Cutter Specification
| Item | Specification |
| Machine Type | CCD Vision CNC Knife Cutter |

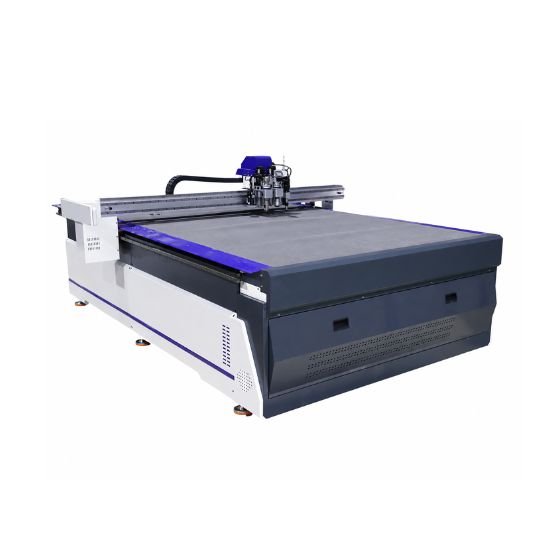

| Working Area | 1600 × 2500 mm (Custom Sizes Available) |
| Cutting Accuracy | ±0.1 mm |
| Repositioning Accuracy | ±0.03 mm |
| Maximum Cutting Speed | Up to 1500 mm/s |
| CCD Camera System | High-Resolution Industrial CCD Camera with Automatic Contour Recognition |
| Image Recognition Accuracy | ±0.05 mm |
| Drive System | Servo Drive |
| Tool Head | Oscillating Knife, Kiss Cut Knife, Creasing Wheel, V-Cut Tool, Milling Tool (Optional) |
| Maximum Cutting | Up to 30 mm (Depending on Material) |
| Feeding System | Manual Feeding / Automatic Conveyor Feeding (Optional) |
| Vacuum System | Vacuum Adsorption Table |
| Motion Control | Servo Motor System |
| Supported File Formats | DXF, AI, PLT, PDF, HPGL, and More |
| Power Supply | AC 220V / 380V, 50/60Hz |
The CCD vision CNC knife cutter is an intelligent digital cutting device that integrates a CCD vision recognition system with CNC vibrating knife cutting technology. It is able to automatically recognize printed patterns and can achieve high-precision contour cutting without manual alignment.
The CCD vision CNC knife cutting machine can process a variety of flexible or semi-rigid materials with high precision, including foam, leather, fabric, corrugated cardboard, cartons, KT boards, PVC foam boards, self-adhesive labels, sealing mat materials, carbon fiber, glass fiber, and various composite materials. With its intelligent CCD vision positioning system, the machine is widely used in digital printing, packaging, advertising signage, footwear manufacturing, and clothing.
The CCD vision CNC knife cutting machine combines a CCD camera and intelligent vision positioning technology, and uses a 1.5-megapixel industrial camera to automatically detect printed contours and edges to achieve high-precision contour cutting. It eliminates errors in manual alignment, guaranteeing consistency and accuracy in cutting results.
The CCD Vision CNC Knife Cutter differs from laser cutters in the way it cuts and the materials it is used on. The CCD vision CNC knife cutting machine uses high-speed vibrating knives for cold cutting. There is no burning or smoke during the processing, and a smooth and burr-free cutting edge can be obtained. It is ideal for processing flexible and semi-rigid materials such as leather, fabric, foam, corrugated paper, rubber, gasket materials, and various printing materials. Laser cutting machines use high-energy laser beams to perform thermal cutting and are more suitable for materials such as metal, acrylic, wood, and some plastics.
When choosing the right CCD Vision CNC Knife Cutter, you need to consider processing materials and production needs. First, determine the type of material you plan to process. For leather, cloth, foam, corrugated paper, or printing materials, the CCD vision CNC knife cutter is an ideal solution. Second, select appropriate product specifications based on product size, production capacity requirements, and automation level, and evaluate whether automatic feeding, multi-tool systems, spindle milling, and other configurations are required. Finally, you also need to choose a manufacturer that can provide professional technical support and customized solutions.
