Auto-Feeding Knife Cutting Machine Manufacturer
MC auto-feeding knife cutting machines are CNC cutting devices with an automatic feeding system. They feed materials continuously during production, so you don’t have to keep moving or aligning sheets by hand, and the machines can run for long periods without stopping.
Our machines are equipped with a high-precision servo control system that controls the feeding length, so every piece you cut comes out the same size. They also have intelligent nesting software that arranges material layout, so you can save more than 20% on material waste. If you have any other configuration requirements, please feel free to contact us at any time.
Types of Auto-Feeding Knife Cutting Machine

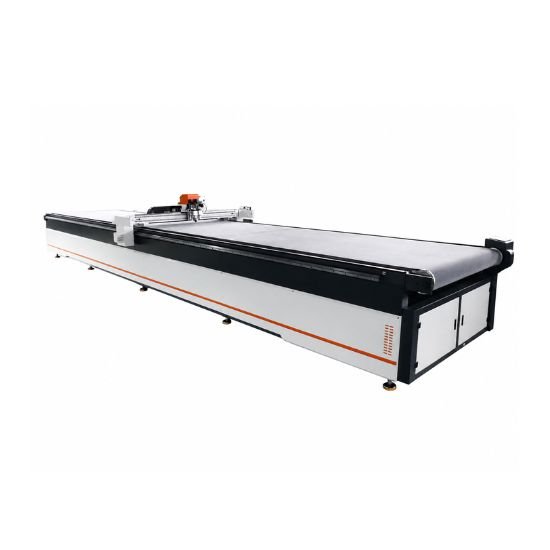

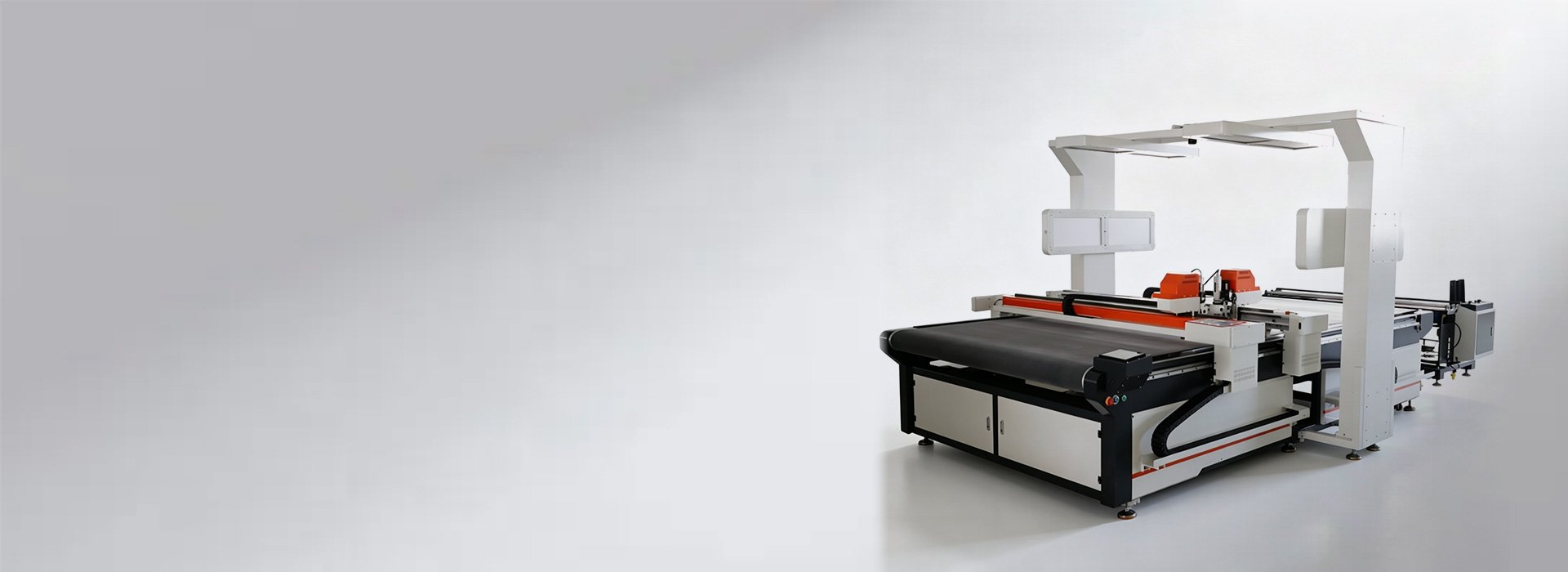

2000 mm × 6000 mm Auto-Feeding Knife Cutting Machine

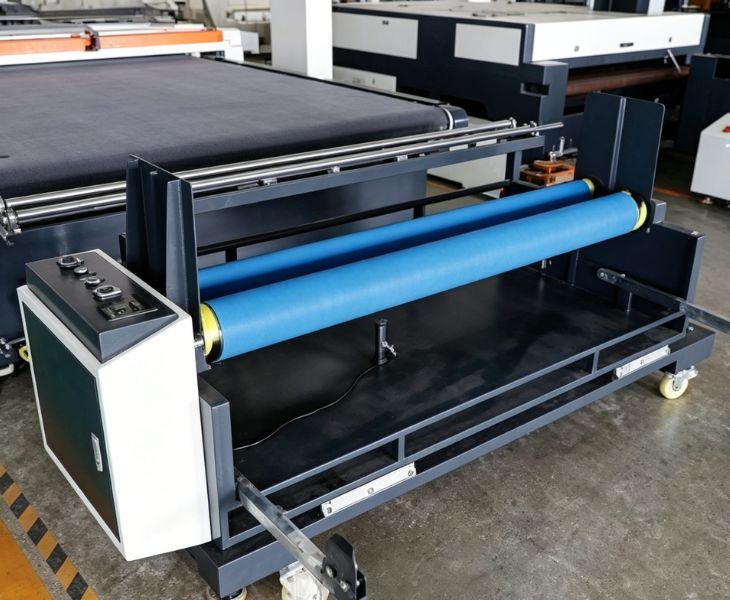

Smart Continuous Roll Feeding System
Our machines are equipped with an intelligent feeding system. With this feeding system, the materials are fed from loading to cutting automatically. No manual handling is needed.
The feeding system and the cutting unit work together to feed the roll material smoothly into the cutting area, so you can process workpieces continuously. The production line is highly automated and requires minimal operator intervention, which keeps production stable.

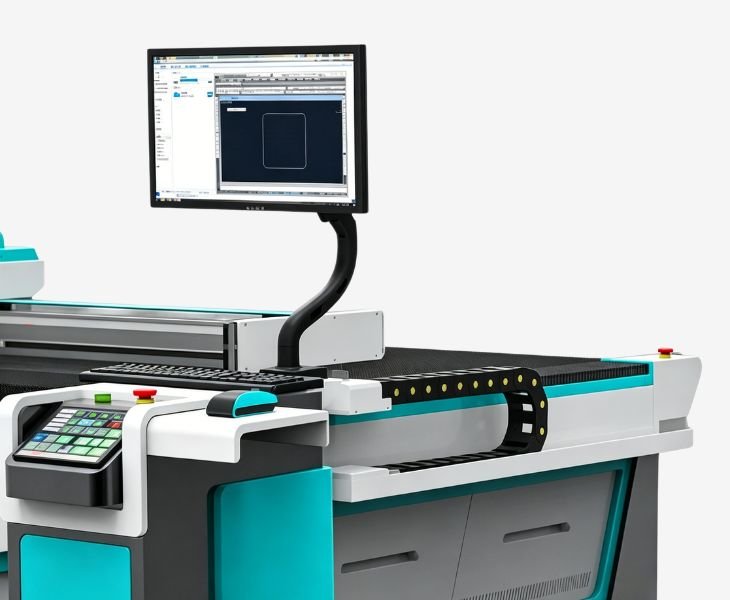

No Die Required Digital Cutting
Our auto-feeding knife cutting machine uses CNC technology. The software generates cutting paths based on imported CAD files. You don’t need to make expensive dies. Just import your design drawings into the computer, set the parameters, and the machine cuts automatically.
This technology lets you change patterns fast, so you can handle small-batch orders for multiple products quickly.

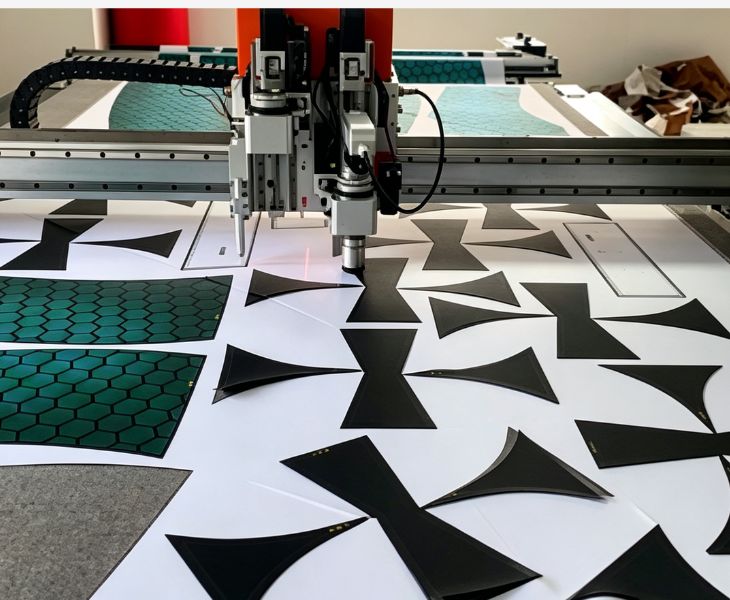

Compatible with All Flexible Materials
The MC Automatic Feed Cutter is equipped with a multifunctional CNC cutting system that handles materials of different hardness and thickness. With just one of our machines, you can reliably cut leather, fabric, rubber, and other materials. For heat‑sensitive materials, we also offer a cold‑cutting model that won’t leave scorch marks on the cut edges.
Applications of the Auto-Feeding Knife Cutting Machine

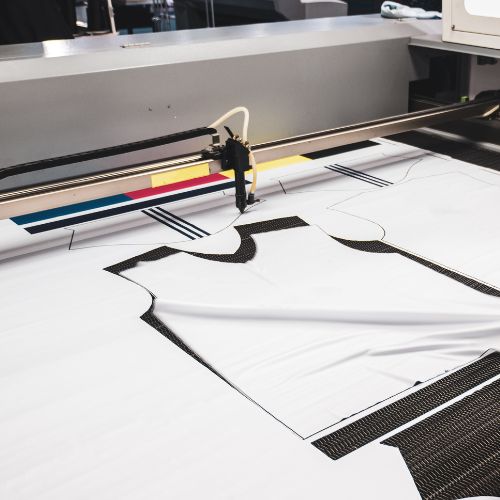

The garment and textile industry often handles small‑batch, multi‑style orders, so cutting efficiency is very important. Our cutting machine feeds material automatically and cuts continuously. This means you cut quickly and get smooth edges.

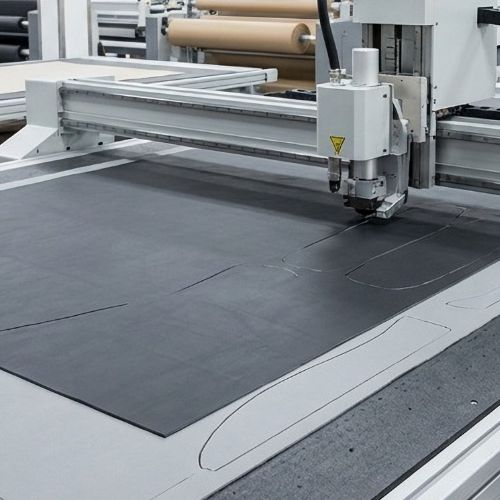

In the footwear and luggage industry, you cut rolls of leather, PU, and other materials with different hardness. The feeding system must keep them from shifting. Our automatic feeding system works with many roll materials and corrects alignment deviations, so you don’t have to worry about the material drifting.
Most interior fabrics and nonwovens are supplied in wide rolls, so automatic feeding is very important. Our wide‑format machines can feed full rolls into the cutting area automatically. Additionally, they are equipped with high-precision servo systems, so your parts remain consistent in size.

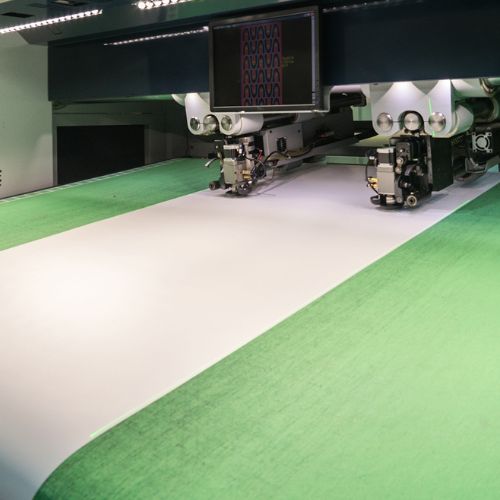

In the furniture industry, most materials are flexible and prone to deformation. Therefore, the feeding system must keep the material stable during transport. Our auto‑feeding knife cutting machine is equipped with a web guide sensor that monitors the material edge. If the material shifts, the system will alert you.
- Specification of Auto-Feeding Knife Cutting Machine
| Category | Item | Specification |
| Machine Overview | Product Name | Automatic Feeding Knife Cutting Machine |
| Feeding System | Automatic Continuous Roll Feeding System | |
| Control System | Industrial CNC Control System | |
| Applicable Materials | Flexible materials | |

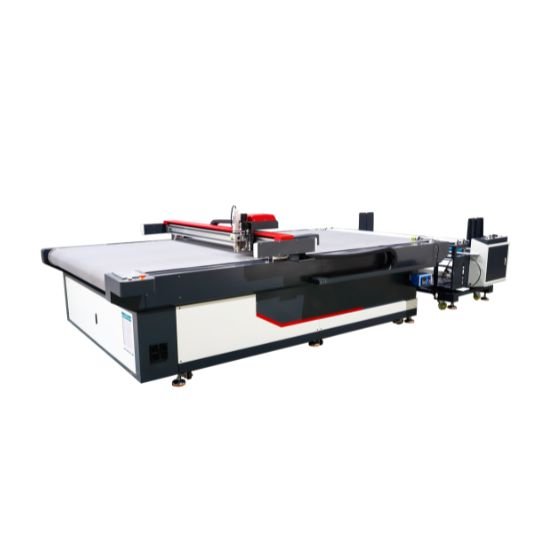

| Working Area | Standard Model | 1600 × 2500 mm |

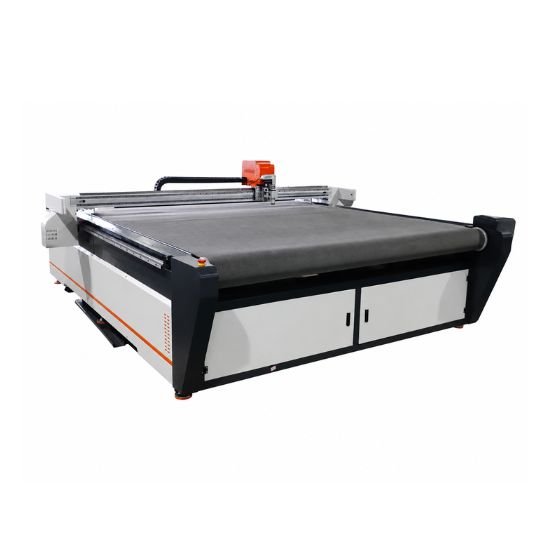

| Medium Model | 2000 × 3000 mm | |
| Extended Model | 2000 × 6000 mm | |

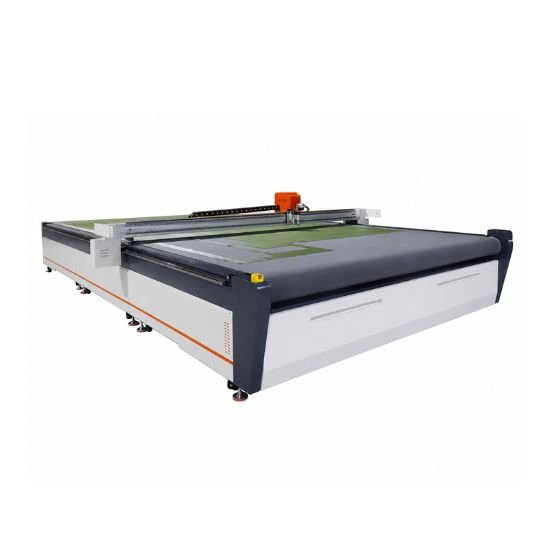

| Extra-Wide Model | 3200 × 6000 mm | |
| Cutting Performance | Cutting Accuracy | ±0.1 mm |
| Repeat Positioning Accuracy | ±0.05 mm | |
| Max Cutting Speed | Up to 1500 mm/s (depends on material) | |
| Cutting Thickness | 0–50 mm (depending on material type) | |
| Automatic Feeding System | Material Type | Roll materials / Sheet materials |
| Feeding Mode | Fully automatic continuous feeding | |
| Alignment System | Automatic edge correction system |
Our automatic feed knife cutting machine first feeds the material into the work area automatically. During the feeding process, the machine corrects any misalignment to prevent the sheet from shifting. When the material is in position, the machine cuts it according to the pattern. After completing a cutting task, the machine pulls in the next section of material automatically.
Our auto‑feeding knife cutting machine cuts materials from 1.6 to 3.2 meters wide, with a maximum roll diameter of 1.4 meters. If you have other production needs, we can also provide custom solutions.
Cutting with an auto‑feeding knife cutting machine does not cause material deformation. Our automatic feeding system monitors material tension and adjusts the unwinding and feeding speeds accordingly. Therefore, your material won’t wrinkle. Additionally, our feed rollers and tensioners feature a soft-contact design that prevents the material from being squeezed or scratched.
Our auto-feeding cutting machine supports both roll and sheet materials. They are equipped with a universal worktable and an automatic feeding system. Therefore, you can process roll materials. Additionally, sheet materials can be cut on a vacuum table. Our automatic feed knife cutter is a versatile machine that can meet your production needs.
During long-term operation, the feeding process remains very stable. Our auto-feeding knife cutting machine uses a timing belt drive with guide rails, which runs with low noise and minimal vibration. As a result, the machine holds a steady feeding pace even during long continuous runs. With this system, you can also avoid material jams during cutting.
The consumable parts of an auto‑feeding knife cutting machine include blades, timing belts, brush strips, sensors, and guide rail sliders. These components endure constant friction during operation, so they wear out over time. To extend the machine’s service life, you need to inspect its condition regularly and replace them when necessary.
