Acoustic Panel Cutting Machine Manufacturer
MC acoustic panel cutting machines are CNC cutting devices designed for soft sound-absorbing and sound-insulating materials. Our machines use a physical cold‑cutting process that generates no heat and minimal mechanical stress, so you don’t have to worry about damaging the material’s acoustic structure.
Our machines are equipped with an intelligent nesting system that optimizes panel layout, so you can reduce material waste by 15%–30%. Furthermore, acoustic panel cutting machines feature a high-rigidity frame, meeting the requirements for 24-hour continuous production of acoustic panels. If you have any other configuration requirements, please feel free to contact us at any time.
Types of Acoustic Panel Cutting Machines

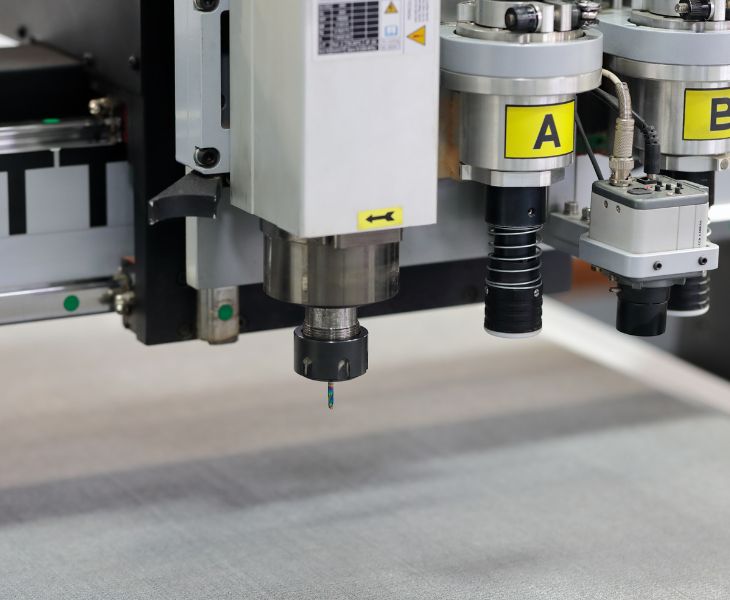

Acoustic-Optimized Cutting System
We have designed an optimized cutting system for soft, porous sound-absorbing materials. Our machines use a vibrating blade for cutting. They are also equipped with optimized toolpaths and cutting parameters designed for acoustic materials. Therefore, you won’t compress the board, cause delamination, or create frayed edges during cutting. This system helps you preserve the board’s acoustic structure and maintain its sound-absorbing performance.

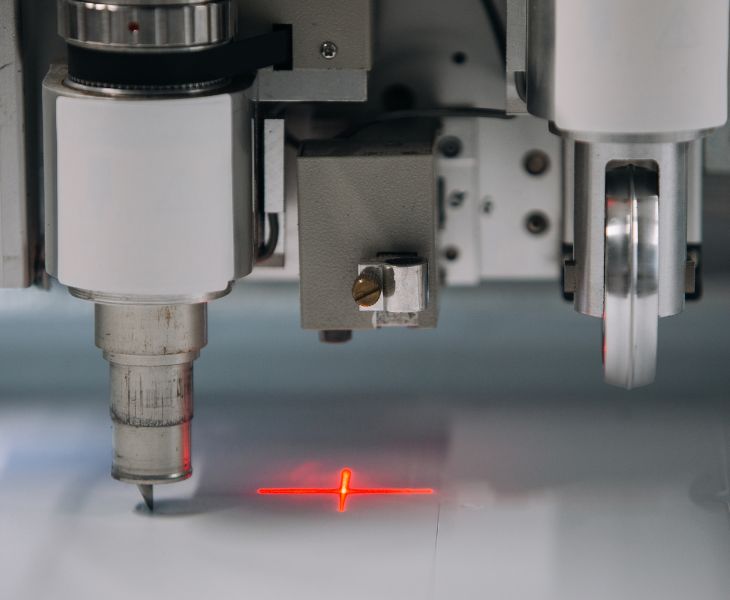

Full Acoustic Material Compatibility
There are many types of acoustic materials, including PET, fiberglass batting, foam acoustic panels, and XPE/IXPE soundproofing materials. Our acoustic panel cutting machine is equipped with a CNC system, so you can choose a suitable cutting tool and adjust the cutting parameters based on the material’s characteristics.
For thinner acoustic materials, our machine also supports multi-layer cutting. With just one MC acoustic panel cutting machine, you can process a wide range of acoustic materials—and the parts come out with consistent dimensions and stable quality.

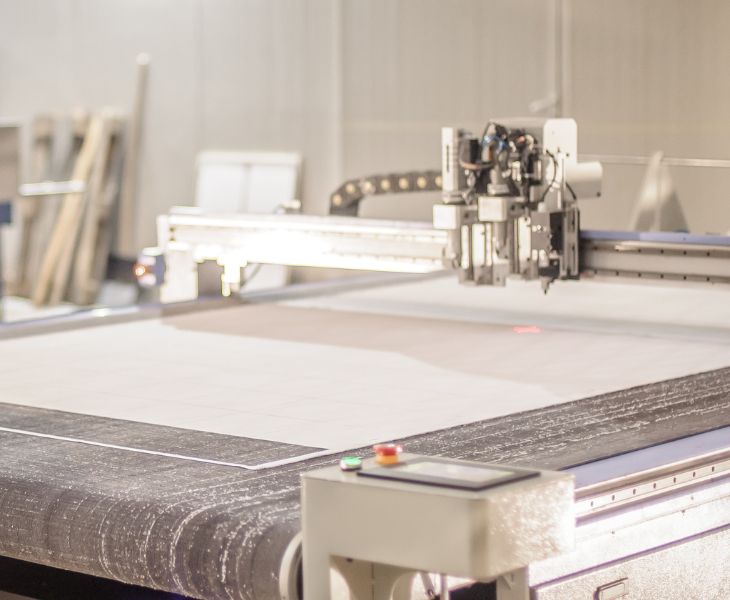

High-Efficiency Acoustic Panel Production
Our acoustic panel cutting machine can be equipped with an optional automatic feeding system. With this system, you don’t need to load materials manually—the machine feeds sheets into the cutting area and starts cutting automatically. This allows you to achieve non‑stop production and reduce downtime.
Meanwhile, we have optimized the cutting speed and feed parameters for acoustic materials, so you can get more output in the same amount of time.
One-Stop Production and Global Service Support
We provide a one-stop solution from equipment selection to after-sales support. We can help you configure machine models, cutting tools, and functional systems based on your production needs. With our proven technical systems and production processes, we can quickly fulfill large-volume orders within 7 to 15 days, so you can get your products into use without delay.
We also have a comprehensive global service network covering multiple countries and regions. No matter where you are located, we provide multilingual operator training, remote technical support, and a global supply of spare parts. To ensure long-term reliability even after long-distance shipping and under demanding working conditions, every machine goes through strict quality inspections and continuous run tests before shipment, so your equipment stays reliable over time.
How Our Cutters Solve Real Challenges in Acoustic Applications

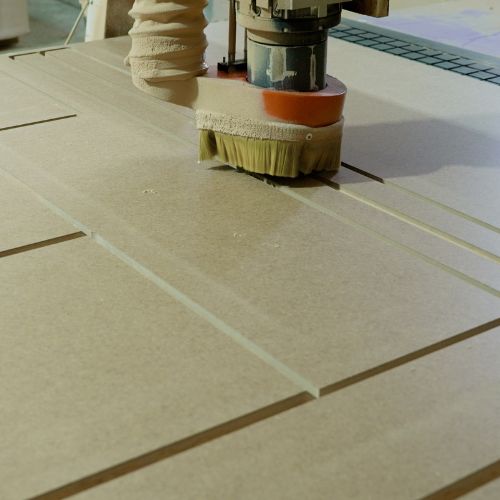

We worked with an eco‑friendly PET processing plant in Berlin. They needed a cutting machine that wouldn’t produce large amounts of smoke or odor during operation. That’s why they chose our acoustic panel cutting machine. Our machine uses a physical cold-cutting method and is equipped with a dust extraction system, so the entire cutting process produces no harmful smoke or fumes. It fully meets the local strict environmental requirements.

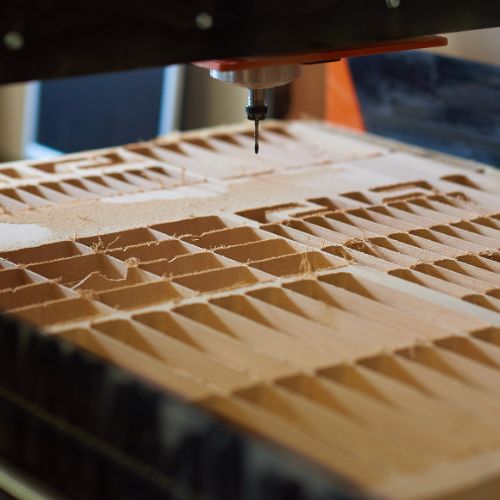

A building acoustics engineering firm in Singapore wanted to cut custom acoustic wall panels. However, the irregularly shaped panels required multiple processing steps, which extended the lead time. Our machines are equipped with CNC systems, so all they need to do is import CAD drawings, and our machines recognize the panels and generate cutting paths automatically. The entire process requires no mold fabrication or manual programming.

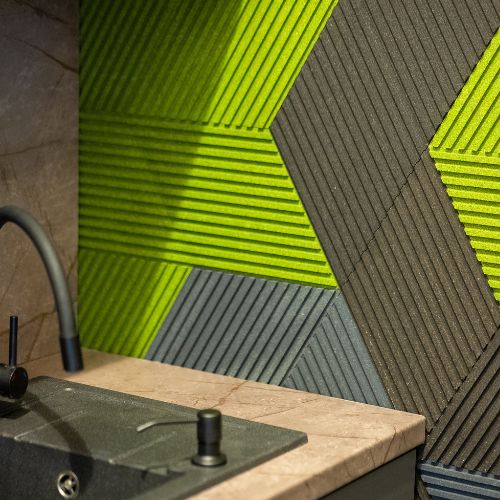

We worked with a high‑end interior design firm in New York. They had very high standards for the smoothness of panel cuts. Our acoustic panel cutting machine is equipped with a CNC system, so you can adjust the blade pressure and vibration frequency based on the material’s density and thickness. That lets the blade cut cleanly through the panels and prevents burrs.

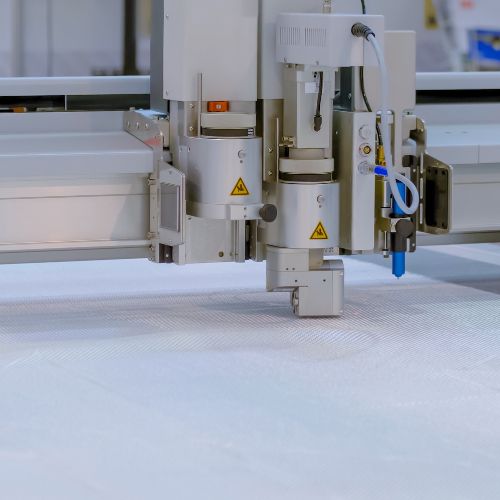

An acoustic material OEM manufacturer in Bangkok needed to cut acoustic panels made from various materials. However, manual cutting required frequent blade changes, which took a long time. Our machine supports digital cutting; simply import the CAD drawings to begin cutting—no blades required. After switching to our machine, their blade change time was reduced from several hours to 15 minutes.
- Specification of Acoustic Panel Cutting Machine
| Category | Item | Specification |

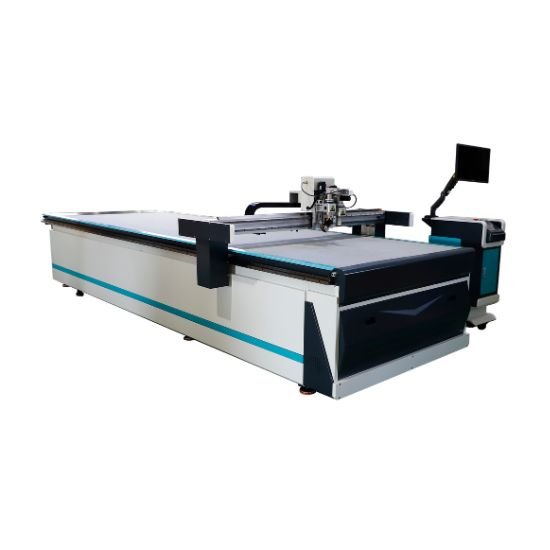

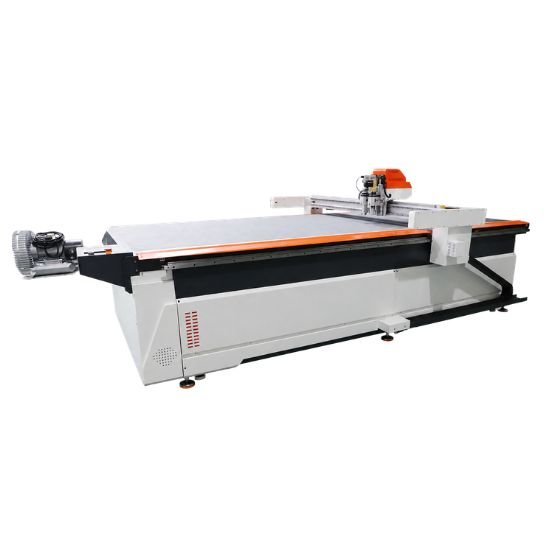

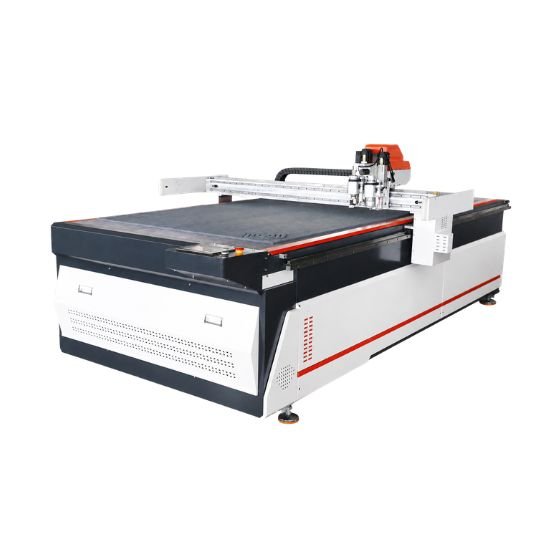

| Basic Specifications | Working Area | 1600×2500mm / 1300×3100mm / 1300×4000mm |
| Max Cutting Thickness | ≤60mm (PET ≤60mm / soft materials ≤50mm) | |
| Machine Weight | 1200–1800kg | |
| Working Table | Felt/vacuum adsorption worktable (partitioned) | |
| Cutting System | Cutting Method | Oscillating knife / Drag knife / Rotary knife / Bevel knife |
| Cutting Accuracy | ±0.1mm (standard) / ±0.01mm (high precision option) | |
| Max Cutting Speed | 2000mm/s | |
| Drive & Control System | Drive System | Servo motors + precision linear guide + ground rack |
| Control System | Industrial CNC control system | |
| Supported Formats | DXF / DWG / PLT / AI / PDF | |
| Material Compatibility | Applicable Materials | PET acoustic panels / polyester fiber boards / fiberglass boards / felt / foam / insulation materials |
| Electrical System | Voltage | AC 220V / 380V, 50/60Hz |
| Optional Features | CCD Vision System | Optional |
| Auto Feeding System | Optional | |
| Double Knife Head | Optional |
First, you can design the cutting patterns in CAD or CorelDRAW, then export them in file formats such as DXF, PLT, or AI. Next, simply import these files into our CNC system, set the cutting depth and speed. If your machine is equipped with an automatic feeding system, it will feed the panels into the cutting area and hold them in place with vacuum suction.
Yes, our machines feature intelligent nesting, automatic tool setting, and vacuum clamping systems. To further automate your production line, you can also add optional systems—automatic feeding, CCD vision positioning, and a dual-head synchronized cutting system. You can combine the automation systems of your acoustic panel cutting machine based on your production needs.
Our acoustic panel cutting machine supports a variety of processes, including slotting, V-groove cutting, perforation, and semi-perforation. You just change the tool and choose the suitable cutting mode on the touch control system, then you can process a wide range of acoustic panels. Plus, the cut edges are smooth.
Cutting acoustic panels with our machine does not affect their sound-absorption performance. Our machine uses a high-frequency vibrating blade to cut panels, without damaging their internal porous fiber structure. Furthermore, the cutting process does not generate large amounts of dust that clog the pores. As a result, the pores in the cut acoustic panels remain open, and their sound absorption coefficient is not reduced.
When choosing an acoustic panel cutting machine, we recommend choosing an oscillating knife cutter. This cutting method produces smooth edges without blocking the material’s pores. At the same time, the machine’s maximum cutting thickness should be at least 50mm to meet common acoustic material processing needs. Furthermore, you should choose a machine with suitable features based on the dimensions of the panels.
Our acoustic panel cutting machine does not require molds or dies. Our machines use digital cutting technology, so all you need to do is import your design files into the CNC system to begin cutting. This means even for small‑batch, multi‑variety orders, you can complete them quickly.
